Orbea Terra

Escape the smooth road. The Terra is the single, versatile machine engineered for pure speed, stability, and handling across gravel, dirt, and pavement. It’s built to elevate your training and conquer any surface you face.

orbea terra adventure

The Orbea Terra: Gravel Without Compromise: Your Ticket to Anywhere

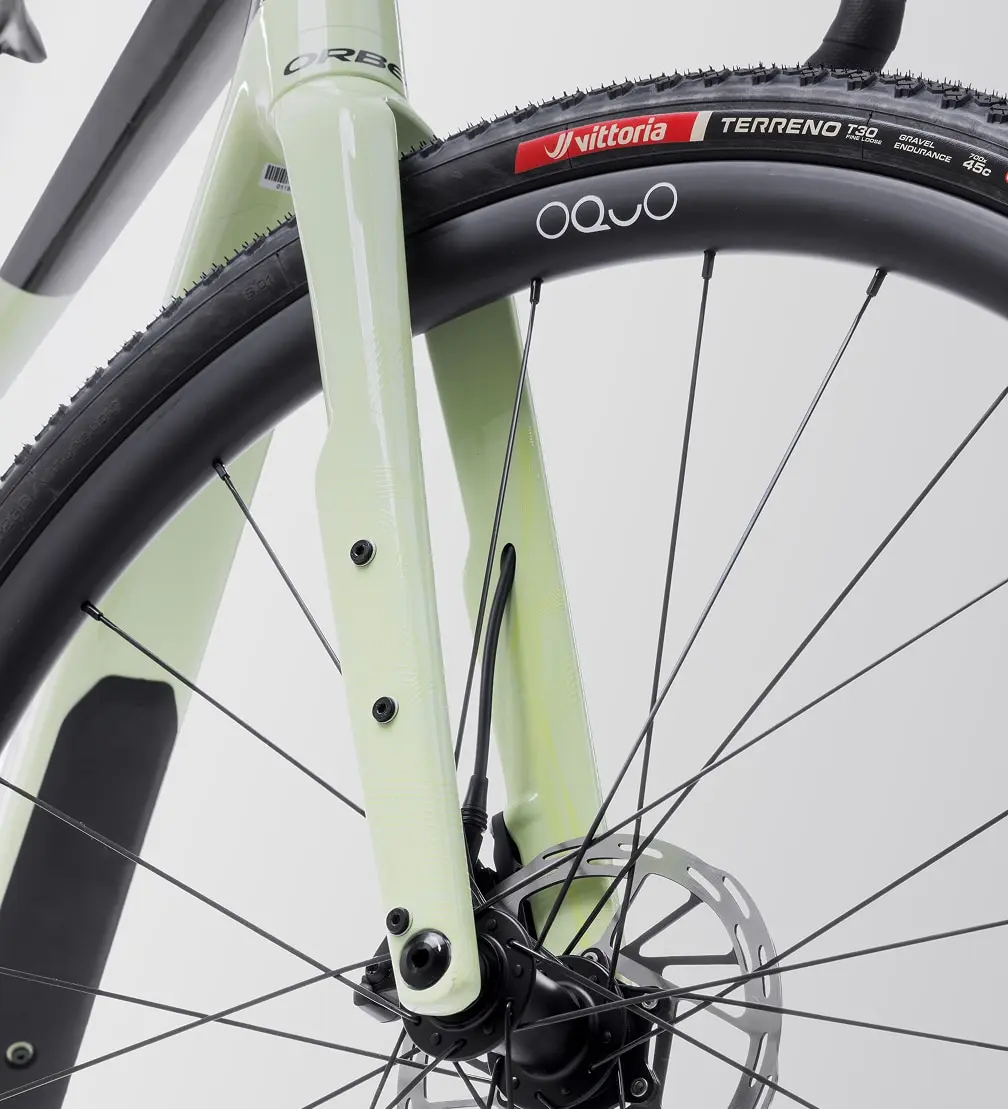

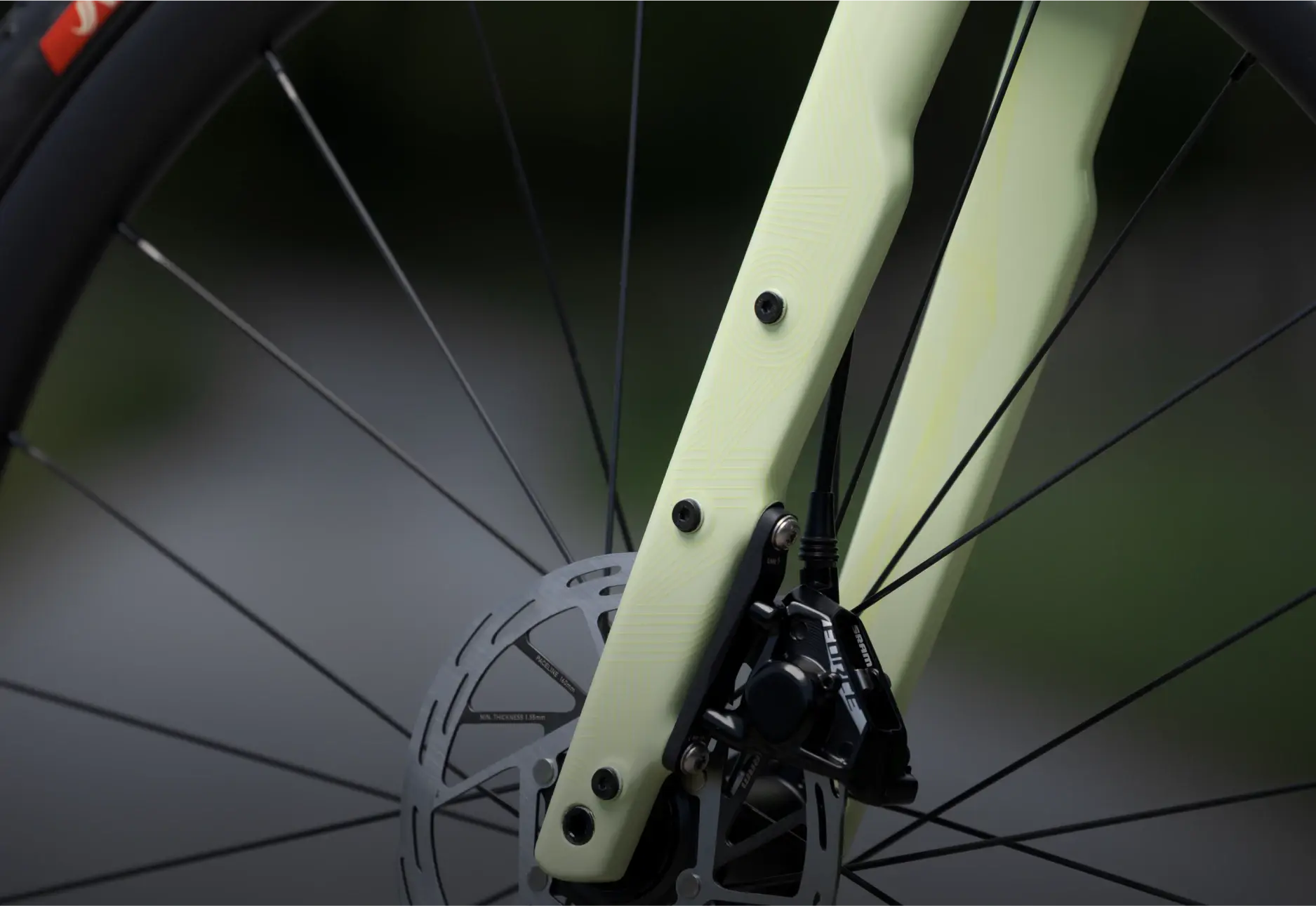

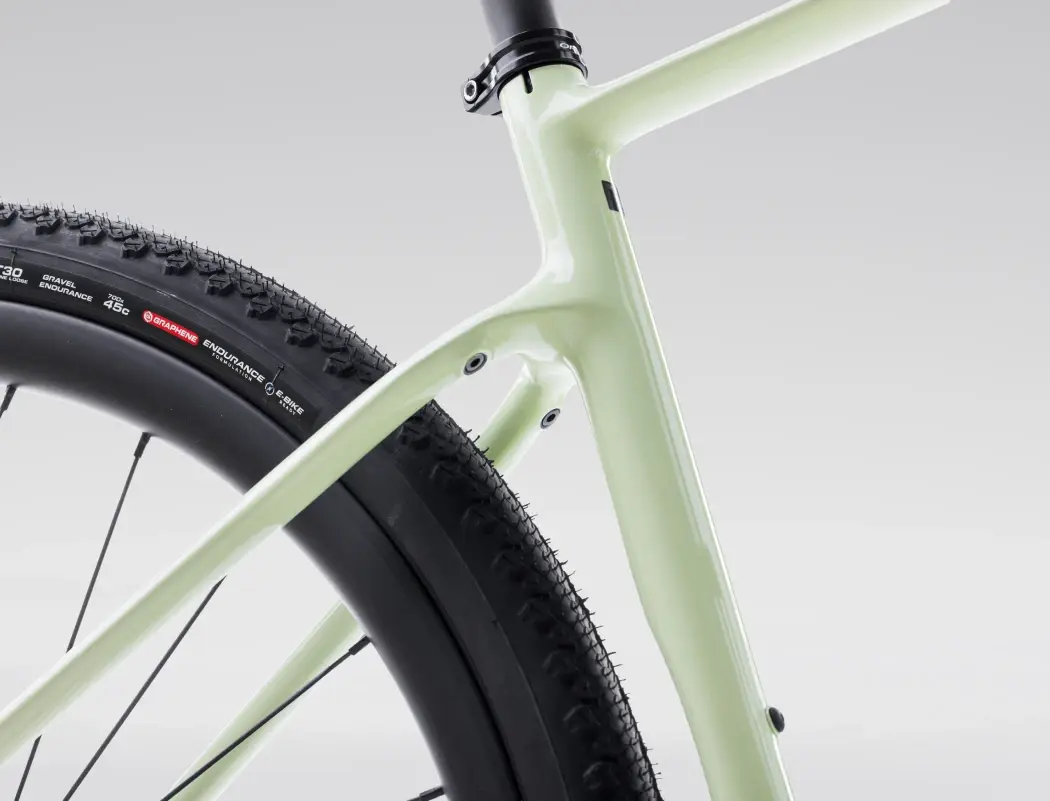

The Orbea Terra is built from the ground up to handle the unpredictable. Designed with “Gravel-Specific Geometry,” it features a longer wheelbase and a lower bottom bracket to provide rock-solid stability when the trail gets loose, yet maintains a sharp, responsive front end for fast transitions back to the tarmac. With extensive mounting points for bikepacking gear, an internal “Lockr” storage compartment in the downtube, and massive tire clearance, the Terra is more than a bike—it’s a versatile tool engineered for backcountry exploration, weekend adventures, and the relentless pursuit of the unknown.

Key Features

Available Colours

  • nickel matt metallic cinnamon matt
  • acid gum fantasy purple carbon view gloss
  • caramel carbon view gloss

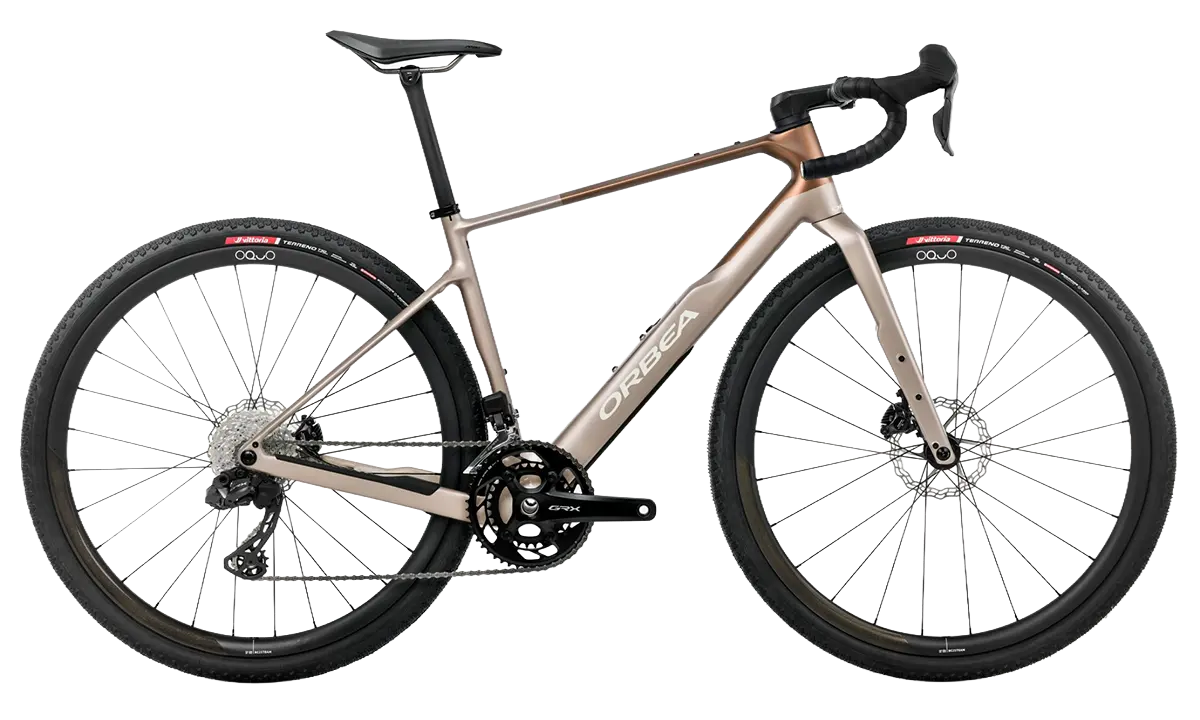

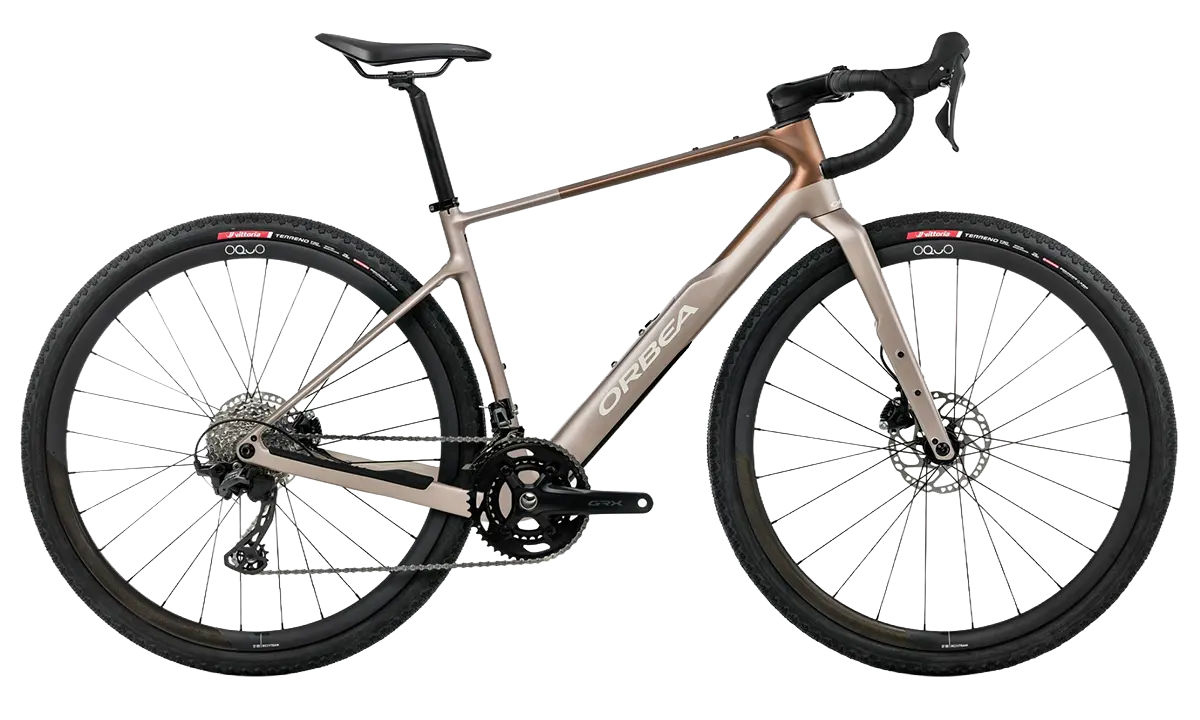

Nickel - Met Cinnamon (Matt)

m20iteam nickel met cinnamon matt

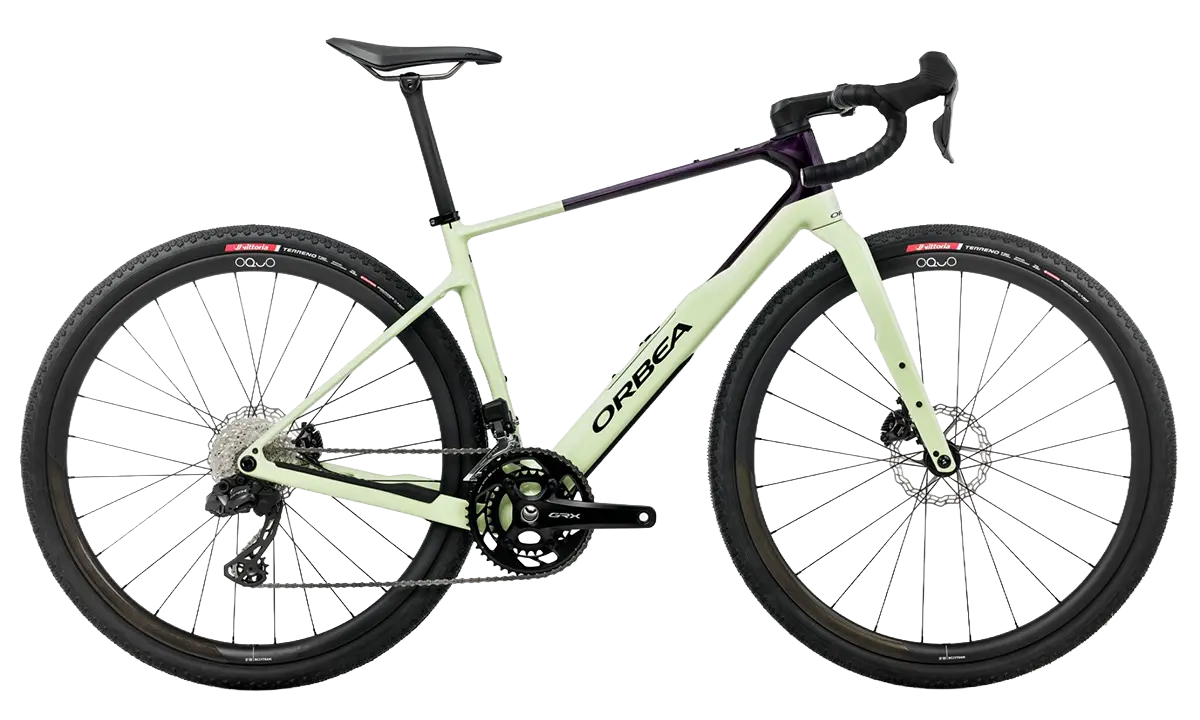

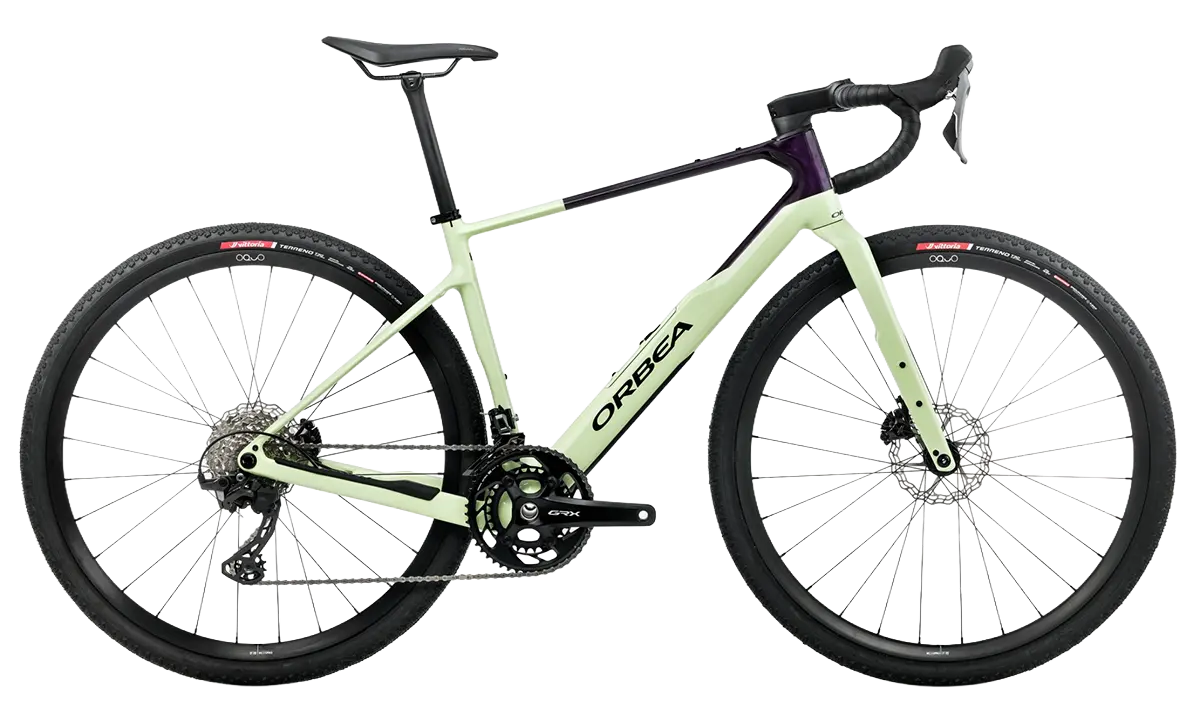

Acid Gum - Fantasy Purple Carbon View (Gloss)

m20iteam acid gum fantasy purple carbon view gloss

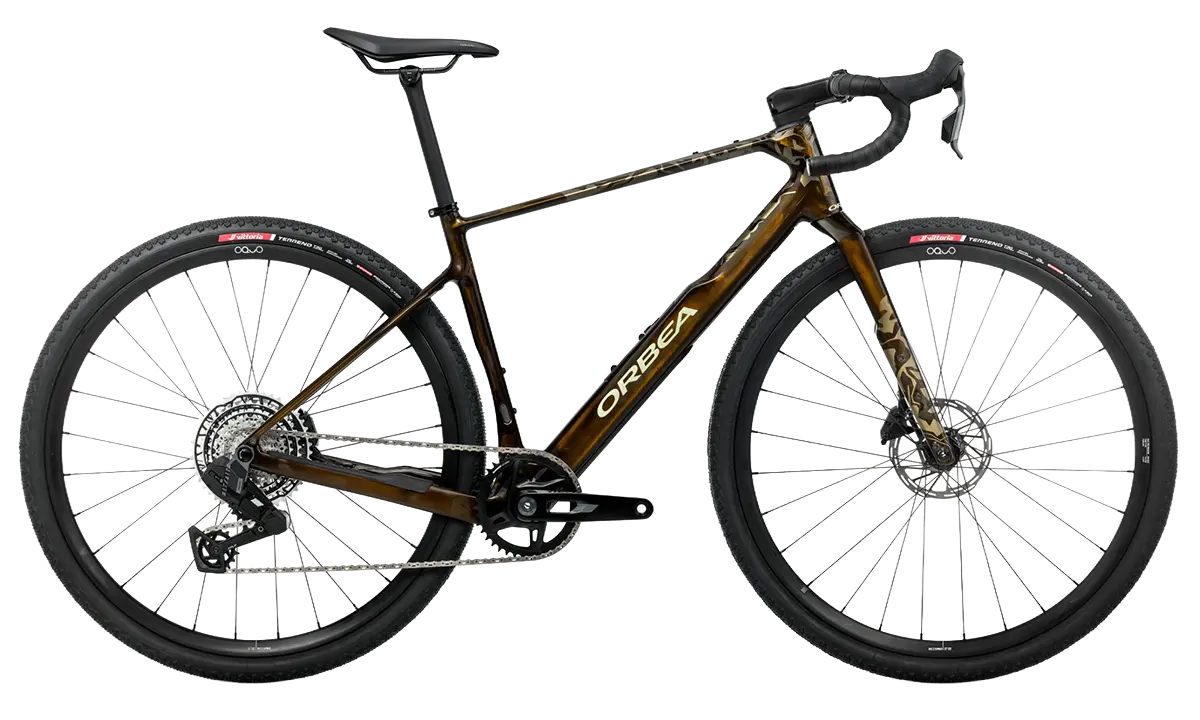

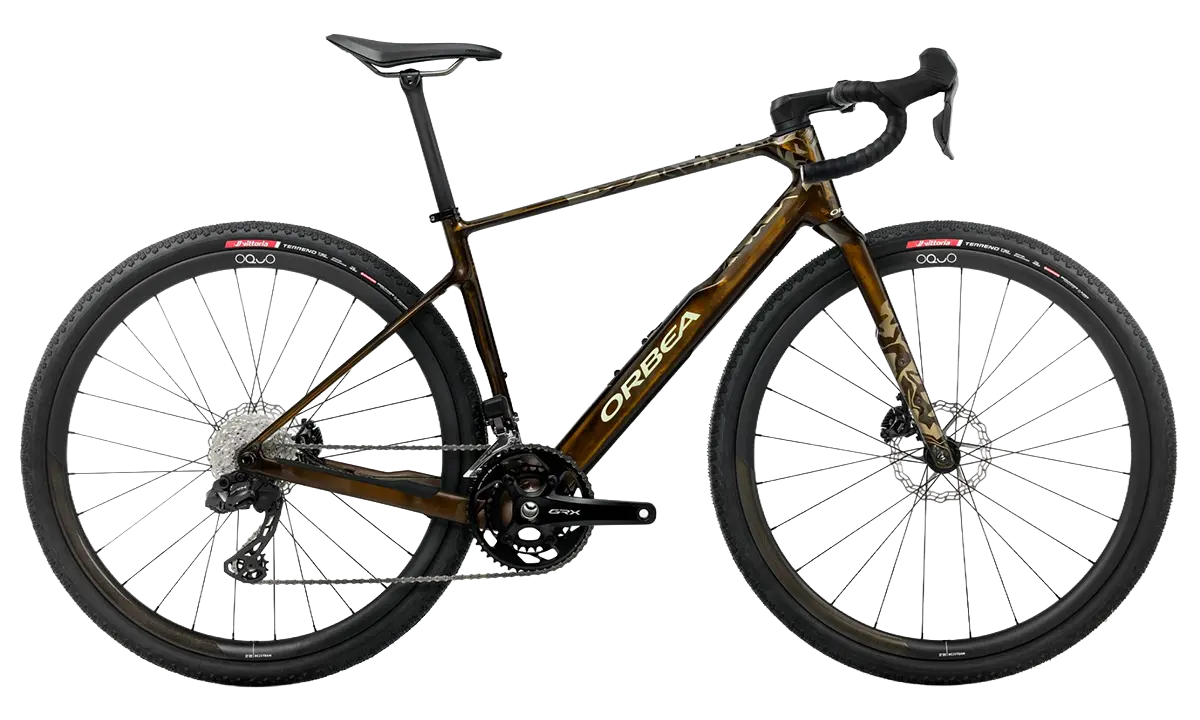

Caramel Carbon View (Gloss)

m20iteam caramel carbon view gloss

Orbea MyO: Design Your Race-Winning Machine

Why ride a bike everyone else owns? The MyO (My Orbea) program allows you to go beyond standard configurations. This is your opportunity to fine-tune every aesthetic and performance detail, ensuring you receive a truly bespoke machine built for your body, your budget, and your individual style.

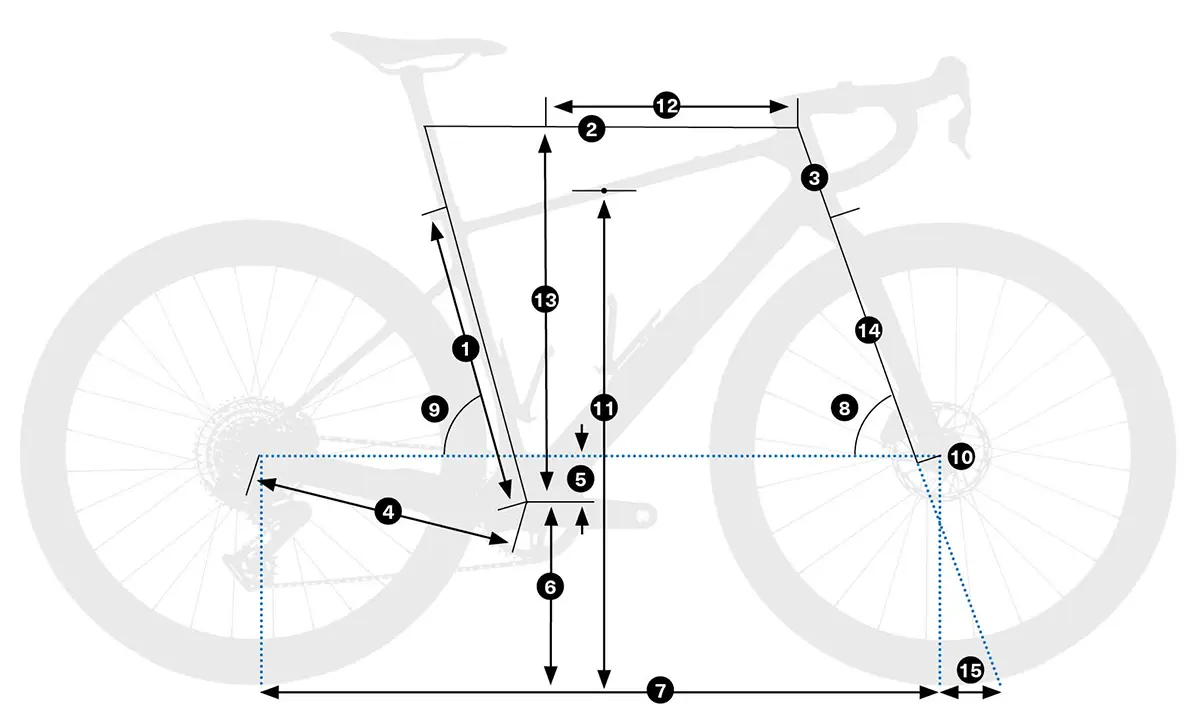

orbea terra geometry
Geometry XS S M L XL XXL
1 Seat Tube (C-T)
410 440 470 505 540 575
2 Top Tube (EFF)
535 547 561 573 585 596
3 Head Tube
110 132,5 153,5 175 198 218
4 Chainstay
430 430 430 430 430 430
5 BB Drop
80 80 80 80 80 80
6 BB Height
261 261 261 261 261 261
7 Wheelbase
1031 1041 1052 1061 1072 1081
8 Head Angle
69 69,5 70 70,5 70,8 71
9 Seat Angle
74º 74º 74º 74º 74º 74º
10 Rake
45 45 45 45 45 45
11 Standover
690 717 743 772 801 828
12 Reach
386 392 400 406 412 417
13 Stack
535 558 580 602 625 645
14 Fork Length
395 395 395 395 395 395
15 Trail
82,7 79,5 76,2 73 71,4 69,8

Example Builds

Build Options

Below are some example builds/models available along with key components. Every aspect of your build is customisable in most cases. Choose a bike which suits you the best and we'll ensure the final build matches your exact budget and goals.

Orbea Terra FAQs

Everything you need to know before ordering a Orbea Terra through Tri Harder.

  • What's the difference between the Terra builds?

    The range runs from £2,599 to £5,749, spanning mechanical Shimano GRX 1x and 2x groupsets through to SRAM XPLR 1×13 and full Shimano Di2 electronic shifting at the top end. Wheels progress from alloy OQUO RC25 PRO to carbon OQUO RC30 Team on the higher builds.

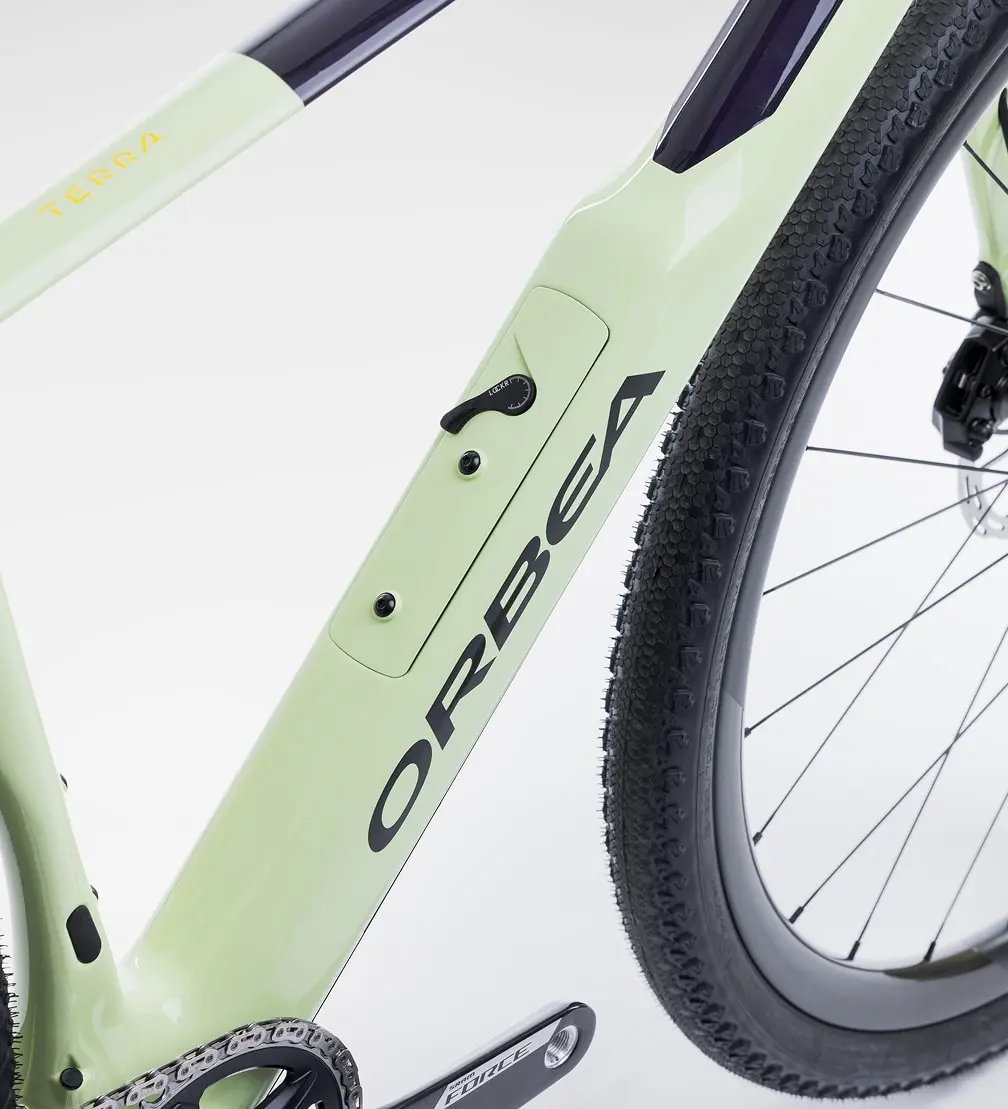

  • What is the Lockr storage feature?

    It’s an internal storage compartment built into the downtube, giving you a place to carry tools, a tube, or snacks without needing a separate bag — useful on longer or unsupported rides.

  • Can I customise the Terra beyond the standard builds?

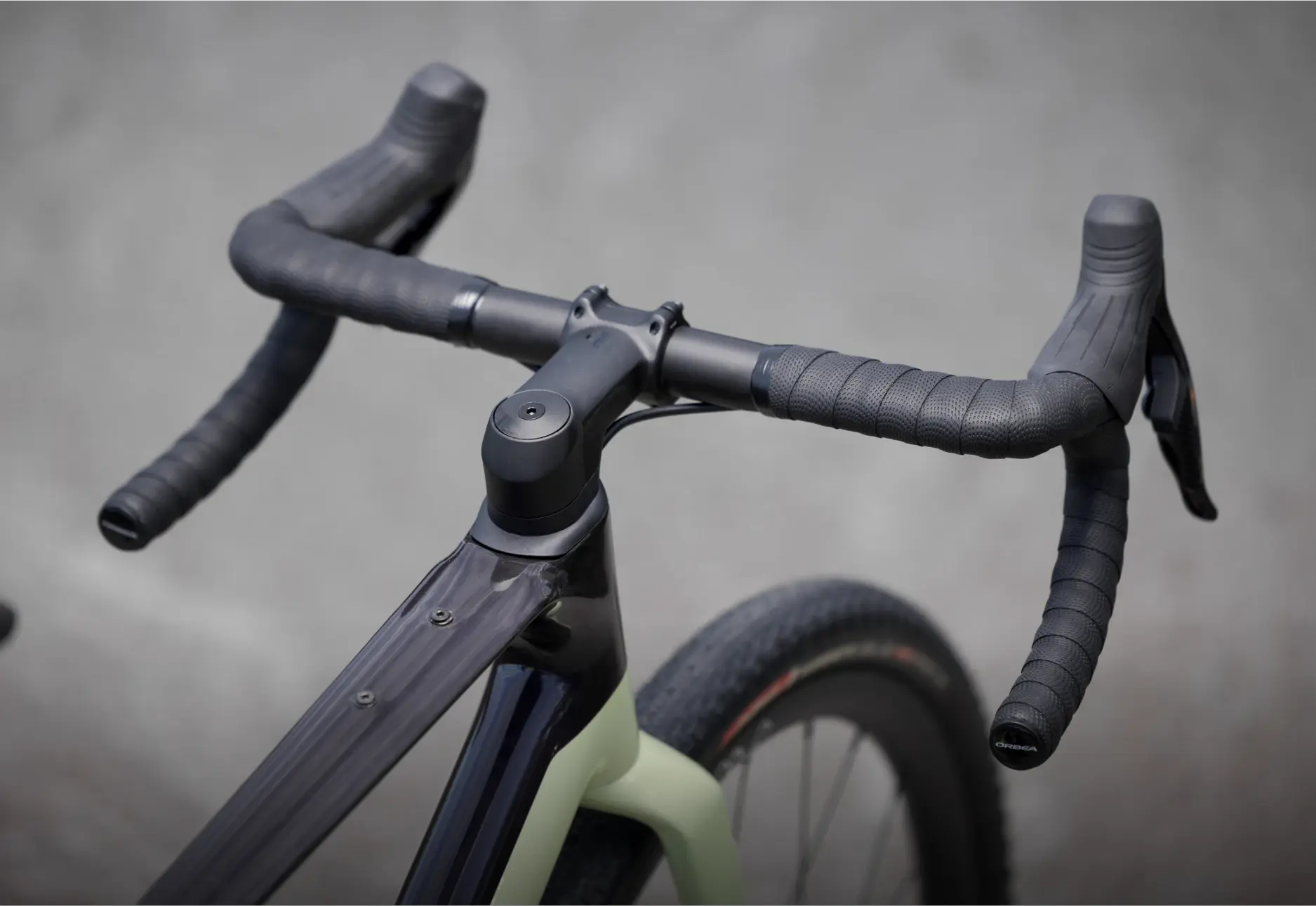

    Yes — through Orbea’s MyO (My Orbea) program you can choose your own colour, logo colour, and paint finish, plus fine-tune wheels, cockpit, and groupset, and dial in crank length, stem length, and handlebar width for a fully personalised fit.

  • Is the Terra only for gravel, or can it handle tarmac too?

    It’s designed to do both — gravel-specific geometry with a longer wheelbase and lower bottom bracket for stability off-road, but a sharp, responsive front end that keeps it composed on fast tarmac sections too.

Don't want to wait?

We have the following bike(s) in stock

What We Think Of The Orbea Terra

Our Verdict
Ben

Ben — Tri Harder

Terra is the bike for someone who wants to go properly far off-road without needing a second bike for training days. The geometry backs you up when the trail gets loose, but it still feels sharp the moment you're back on tarmac.

What we like

  • Genuine range depth — seven builds from £2,599 to £5,749, covering mechanical 1x/2x through to full electronic groupsets, so there's a real entry point and a real ceiling
  • Internal "Lockr" downtube storage — a proper practical feature, not just marketing language, for anyone doing longer unsupported rides
  • Orbea's MyO program means unlimited custom colours and full component/fit customisation once you're ready to go beyond the standard build

Worth knowing

  • £2,599 entry is a genuine step up from Argon 18's Dark Matter or Grey Matter at similar positioning — this isn't a budget gravel bike

Best For

Riders who want serious off-road capability and genuine build-to-build progression, from a solid mechanical groupset right through to top-end electronic — plus the option to go fully bespoke through MyO.
