Orbea Orca Aero
The Orbea Orca Aero has been reshaped from the ground up for 2027 — not just for a straight headwind, but for the yaw angles you actually ride in. Lower weight, wider tyre clearance, and a stiffer frame mean this is the fastest Orca Aero Orbea has built.
Speed, rebuilt from every angle.
Starting from: £4,999
Orbea Orca Aero: A Different Approach to Aero
Most aero bikes are optimised for a 0° headwind — a scenario that barely exists on the road. Orbea took the Orca Aero further, reshaping the frame for performance across the full range of real-world yaw angles, while treating the bike and rider as one aerodynamic system rather than optimising the frame in isolation.
The result is a bike built in four stages: rethinking the aero approach itself, optimising how rider and machine work together, engineering for future racing standards, and validating every gain in the wind tunnel and on the road.
Key Features
Aero in Every Corner
Reshaped frame sections and a minimal rear dropout design reduce resistance at every angle — not just head-on.
Engineered as One System
New Oquo RA57LTD carbon wheels, an OC RA10 carbon cockpit, a low-stack saddle, flush bottle cages, and a redesigned service box all work together as a single aerodynamic package.
Faster Together
A low centre of gravity, race geometry, and 13 sizes with a precise-fit cockpit mean the bike disappears underneath the rider. Global stiffness is up 27.5%, in a 900g OMX frame.
Future Racing Standards
Tyre clearance up to 37mm (optimised for 29–35mm), UDH compatible, internal seatpost clamp, integrated Di2 battery solution, and fork bumper protection — built for where road racing standards are heading, not just where they are now.
Available Colours
Golden Off White - Sunset (Gloss)
Royal Plum (Matt) - Fantasy Purple C. View (Gloss)
Magic Gold C. View - Titanium (Gloss)
Frozen Concrete - Aurora Blaze (Matt)
MYO (Fully Customised)
Orbea MyO: Design Your Race-Winning Machine
Why ride a bike everyone else owns? The MyO (My Orbea) program allows you to go beyond standard configurations. This is your opportunity to fine-tune every aesthetic and performance detail, ensuring you receive a truly bespoke machine built for your body, your budget, and your individual style.
Unlimited Custom Colours
Choose your exact base colour, logo color, and paint finish (gloss or matt) from Orbea’s massive palette. Create a truly unique aesthetic that is guaranteed to turn heads on the start line.
Bespoke Component Selection
Fine-tune your budget and performance by selecting specific wheelsets, integrated cockpits, and electronic gearing (e.g., SRAM vs. Shimano) to match your riding goals.
Optimised Sizing & Fit
Perfect your position before the build begins. Select specific crank arm lengths, stem lengths, and handlebar widths to guarantee a flawless, personalised fit delivered to your door.

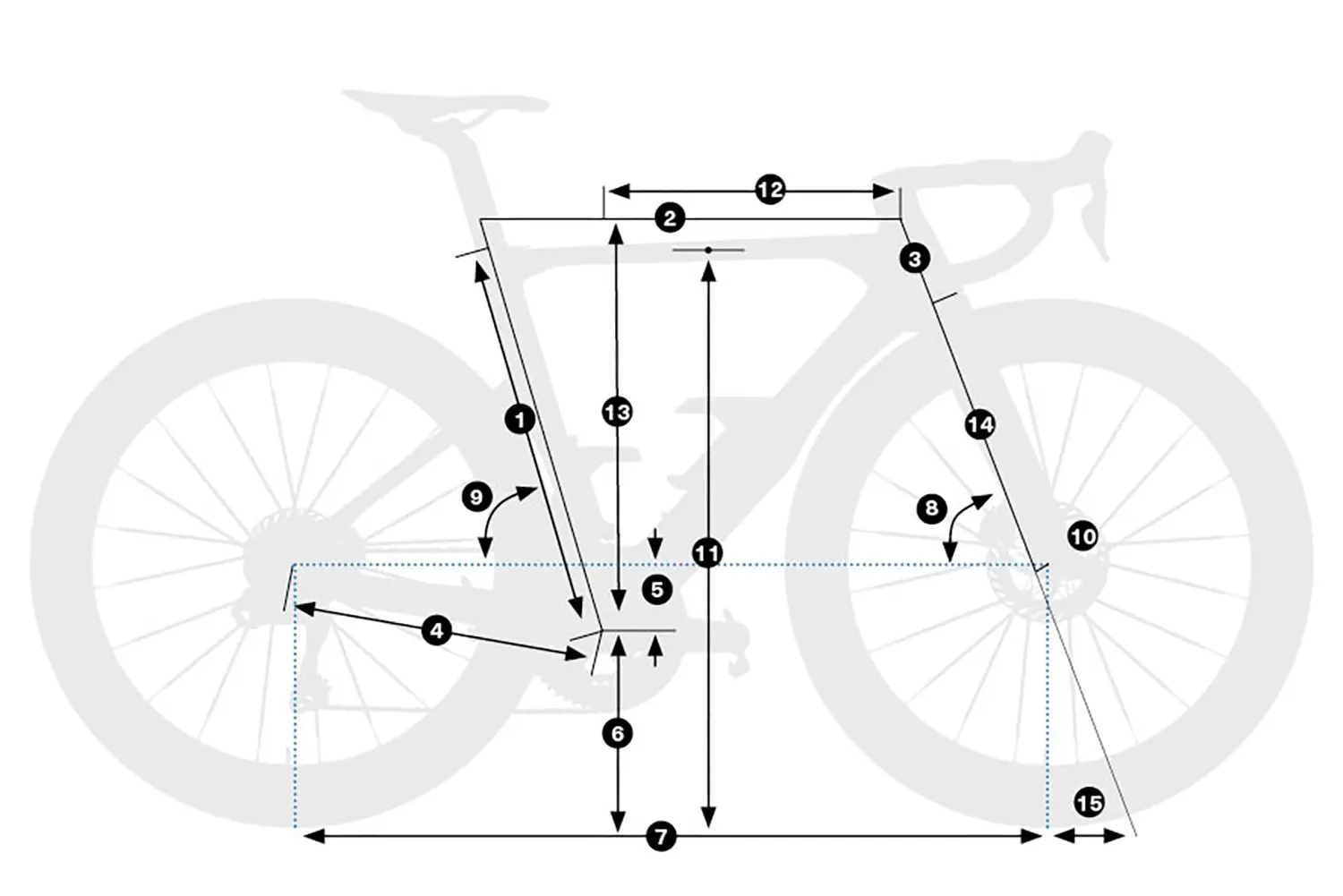

Geometry
| Geometry | 47 | 49 | 51 | 53 | 55 | 57 | 60 |
|---|---|---|---|---|---|---|---|
|
1
Seat Tube (C-T)
|
459 | 474 | 499 | 524 | 545 | 565 | 592 |
|
2
Top Tube (EFF)
|
505 | 518 | 530 | 543 | 555 | 571 | 584 |
|
3
Head Tube
|
84 | 92 | 107 | 122 | 145 | 163 | 190 |
|
4
Chainstay
|
408 | 408 | 408 | 408 | 408 | 408 | 408 |
|
5
BB Drop
|
78 | 78 | 78 | 78 | 76 | 76 | 76 |
|
6
BB Height
|
- | - | - | - | - | - | - |
|
7
Wheelbase
|
966 | 971 | 973 | 974 | 985 | 995 | 1009 |
|
8
Head Angle
|
70,8 | 71,3 | 72,2 | 72,8 | 73 | 73,2 | 73,2 |
|
9
Seat Angle
|
74,5 | 74 | 73,7 | 73,5 | 73,5 | 73,2 | 73,2 |
|
10
Rake
|
48 | 48 | 48 | 43 | 43 | 43 | 43 |
|
11
Standover
|
723 | 734 | 754 | 776 | 798 | 816 | 842 |
|
12
Reach
|
370 | 375 | 380 | 385 | 390 | 397 | 404 |
|
13
Stack
|
495 | 504 | 520 | 540 | 560 | 578 | 604 |
|
14
Fork Length
|
368 | 368 | 368 | 368 | 368 | 368 | 368 |
|
15
Trail
|
68,6 | 65,4 | 59,7 | 61,2 | 59,9 | 58,6 | 58,6 |
Example Builds
Build Options

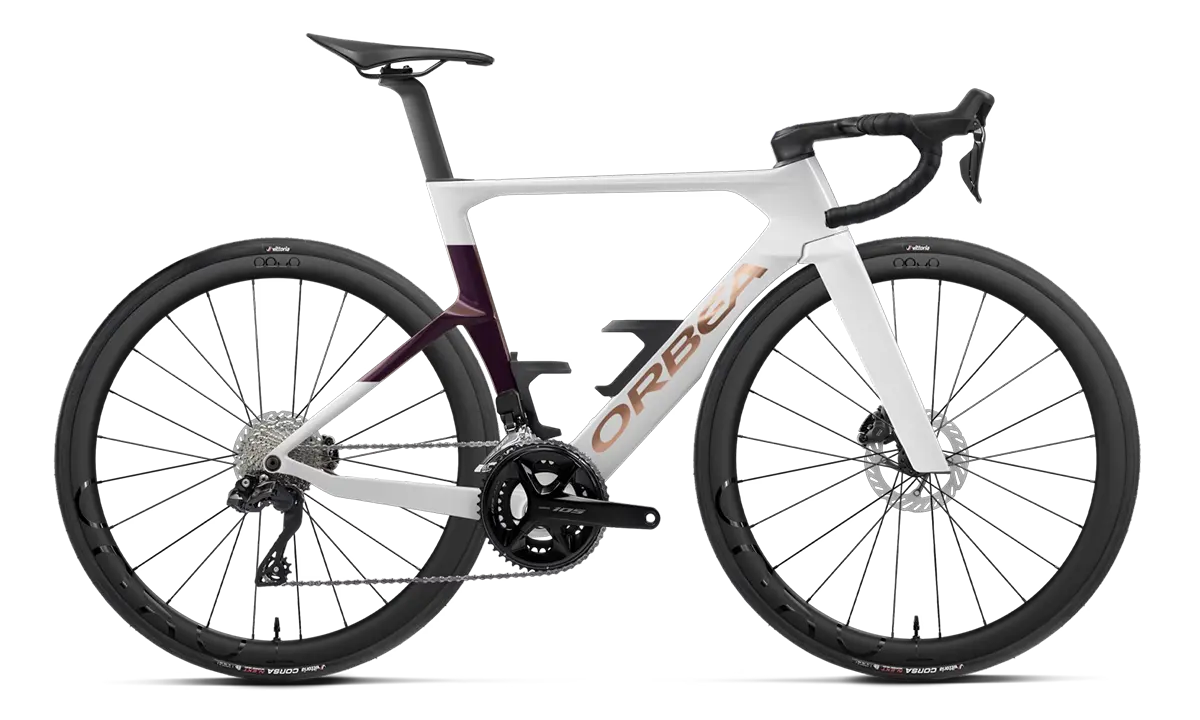

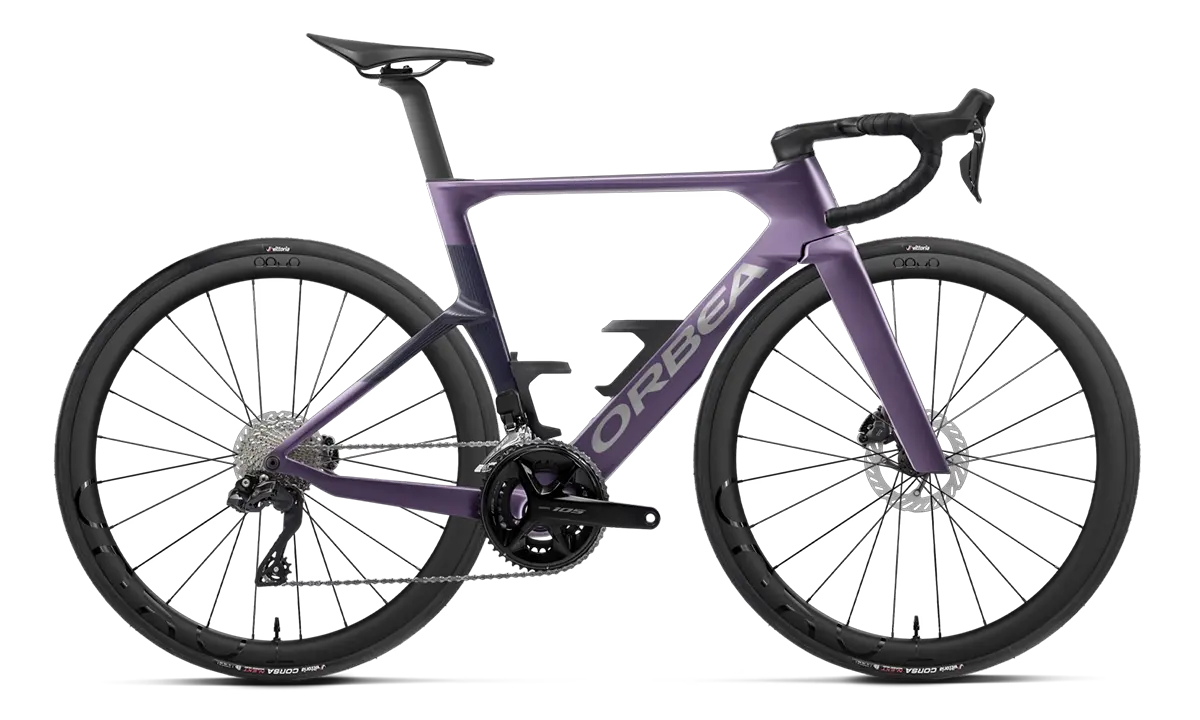

M30i LTD
£4,999
- Frame Orbea Orca Aero Carbon OMX
- Fork Orbea Orca Aero OMX ICR
- Groupset Shimano 105 Di2 R7170
- Wheels Oquo RP50TEAM

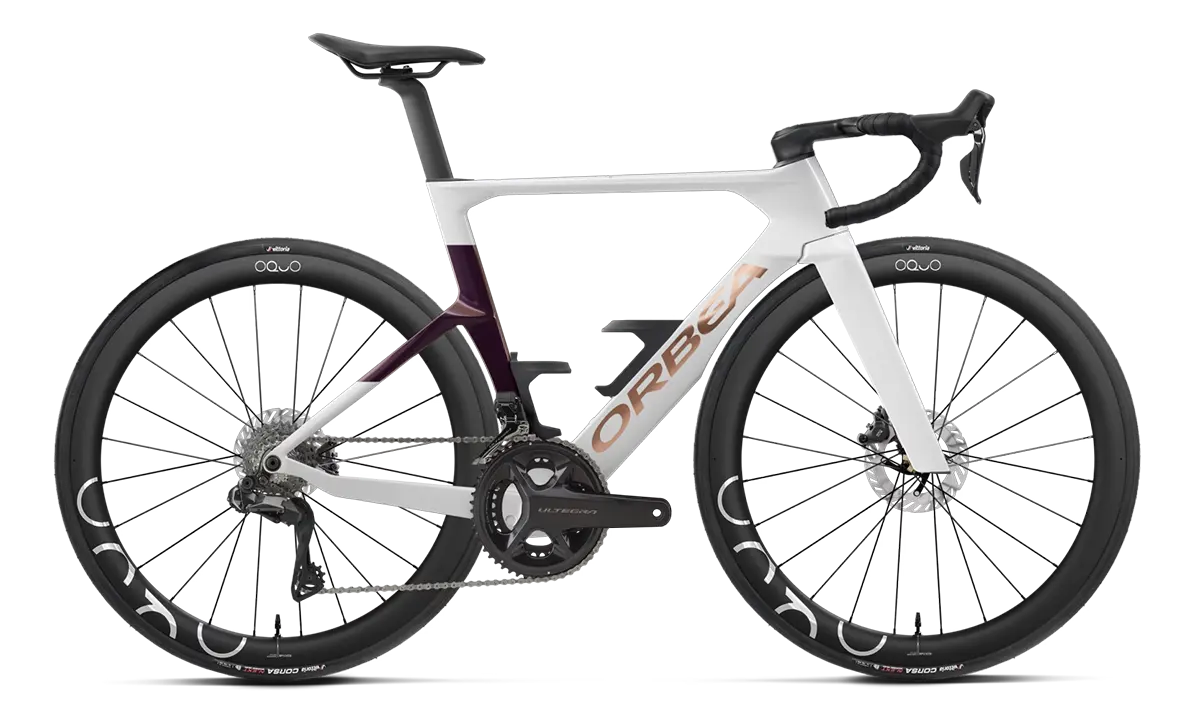

M20i LTD
£5,899
- Frame Orbea Orca Aero Carbon OMX
- Fork Orbea Orca Aero OMX ICR
- Groupset Shimano Ultegra Di2 R8150
- Wheels Oquo RP50LTD

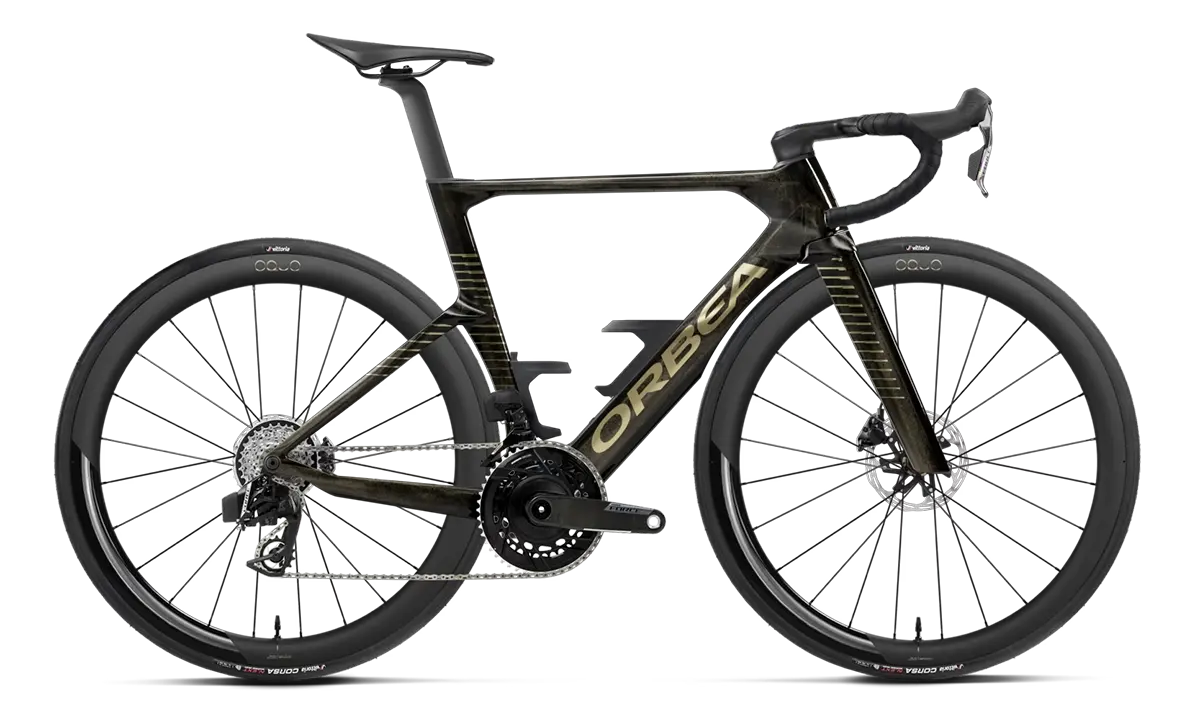

M21e LTD
£6,599
- Frame Orbea Orca Aero Carbon OMX
- Fork Orbea Orca Aero OMX ICR
- Groupset SRAM Force AXS eTap
- Wheels Oquo RA57LTD/RP50LTD mix

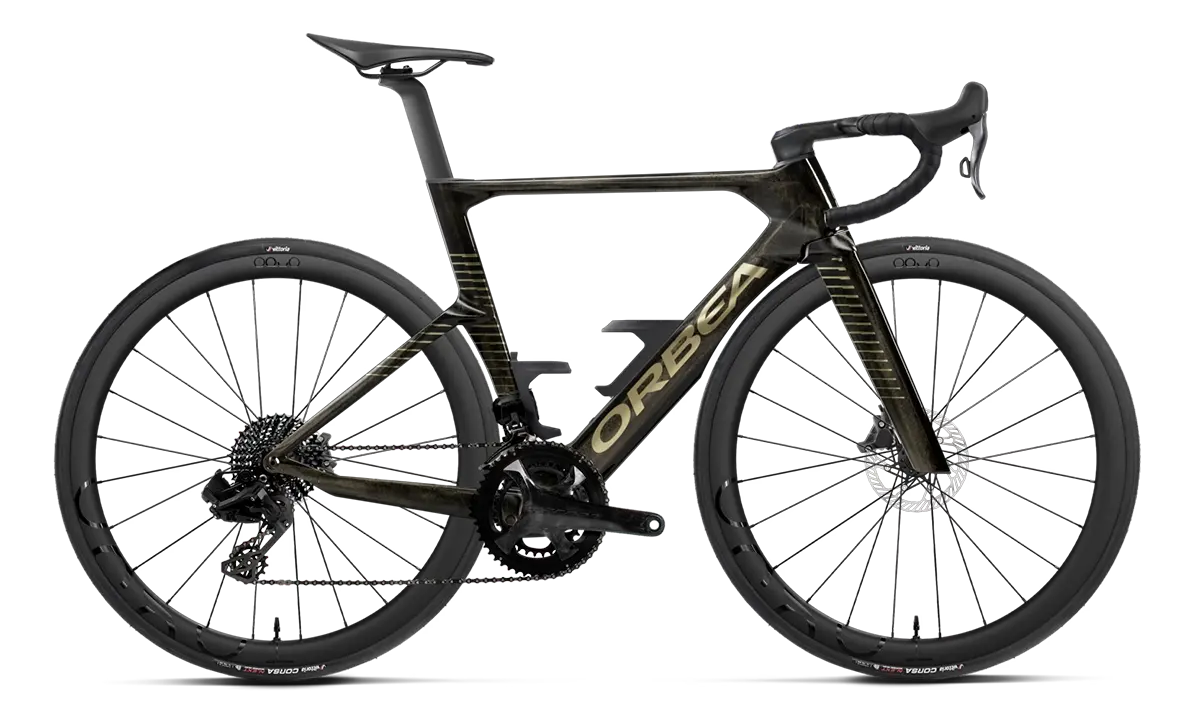

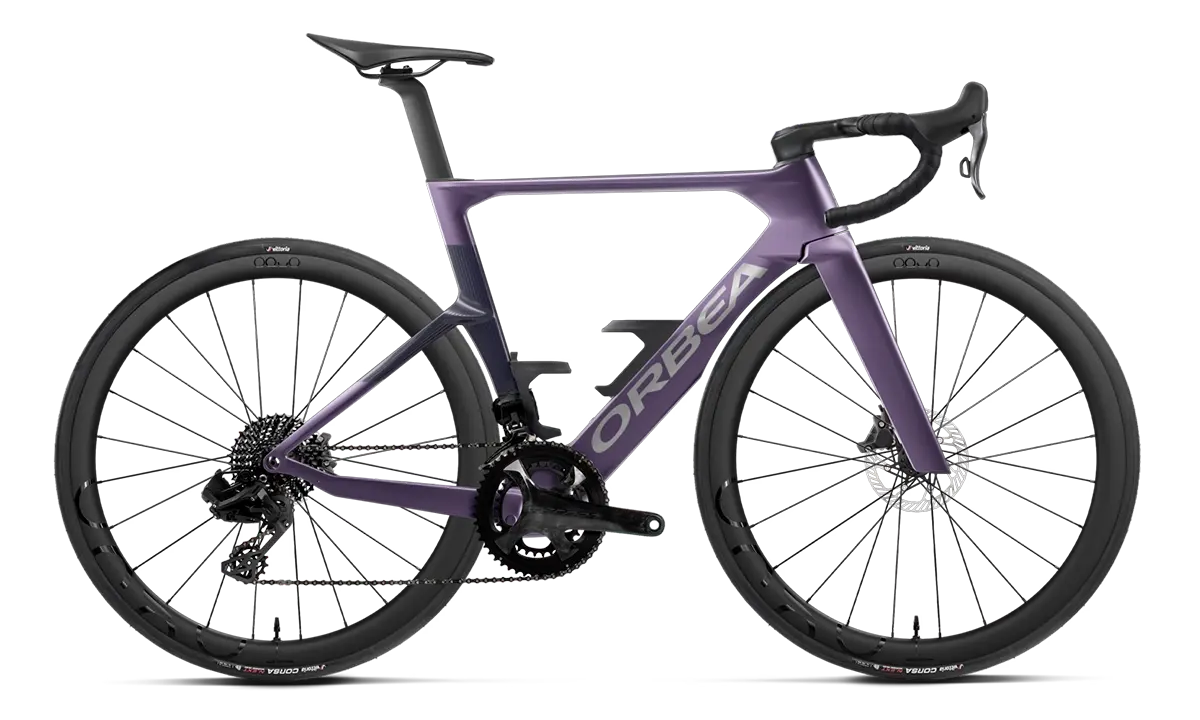

M22 LTD
£5,899
- Frame Orbea Orca Aero Carbon OMX
- Fork Orbea Orca Aero OMX ICR
- Groupset Campagnolo Record
- Wheels Oquo RP50TEAM

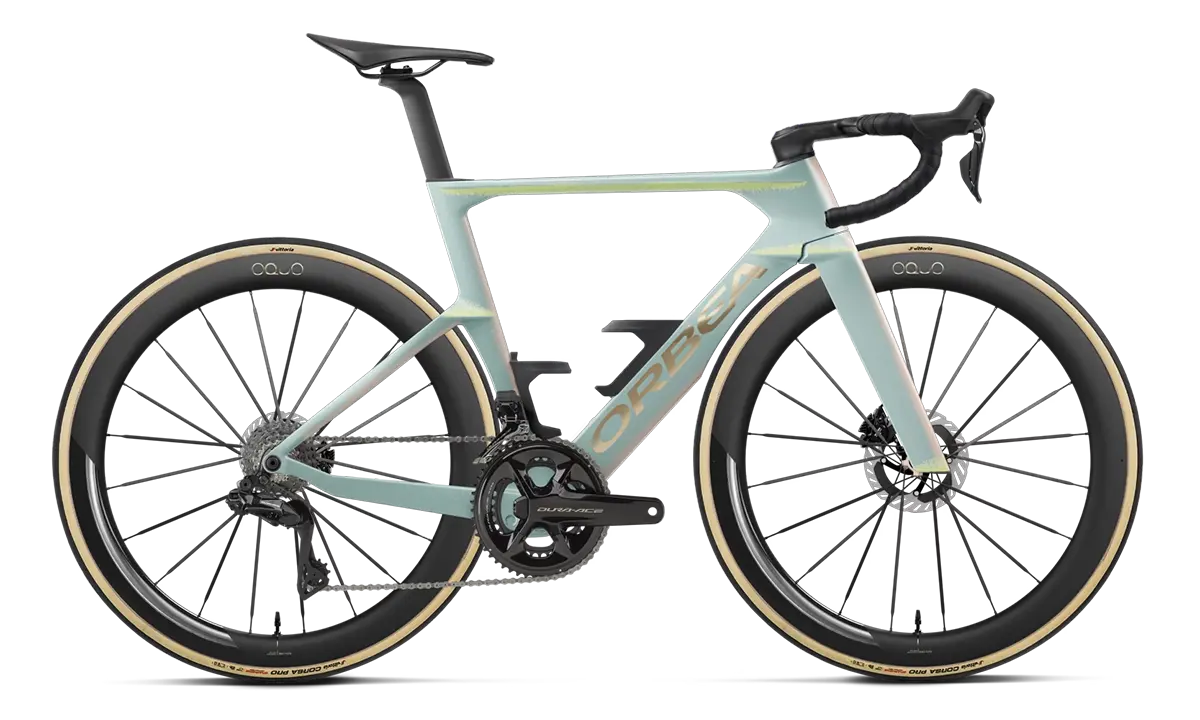

M10i LTD PWR
£9,999
- Frame Orbea Orca Aero Carbon OMX
- Fork Orbea Orca Aero OMX ICR
- Groupset Shimano Dura-Ace Di2 R9250, power meter
- Wheels Oquo RA57LTD

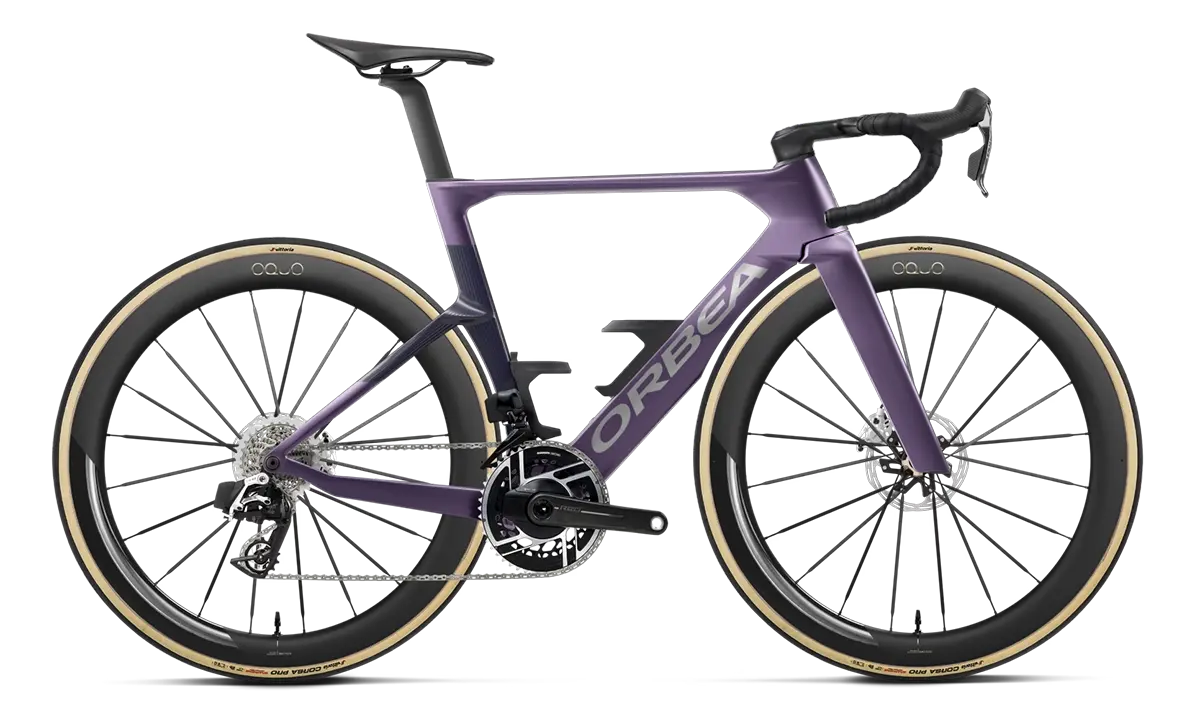

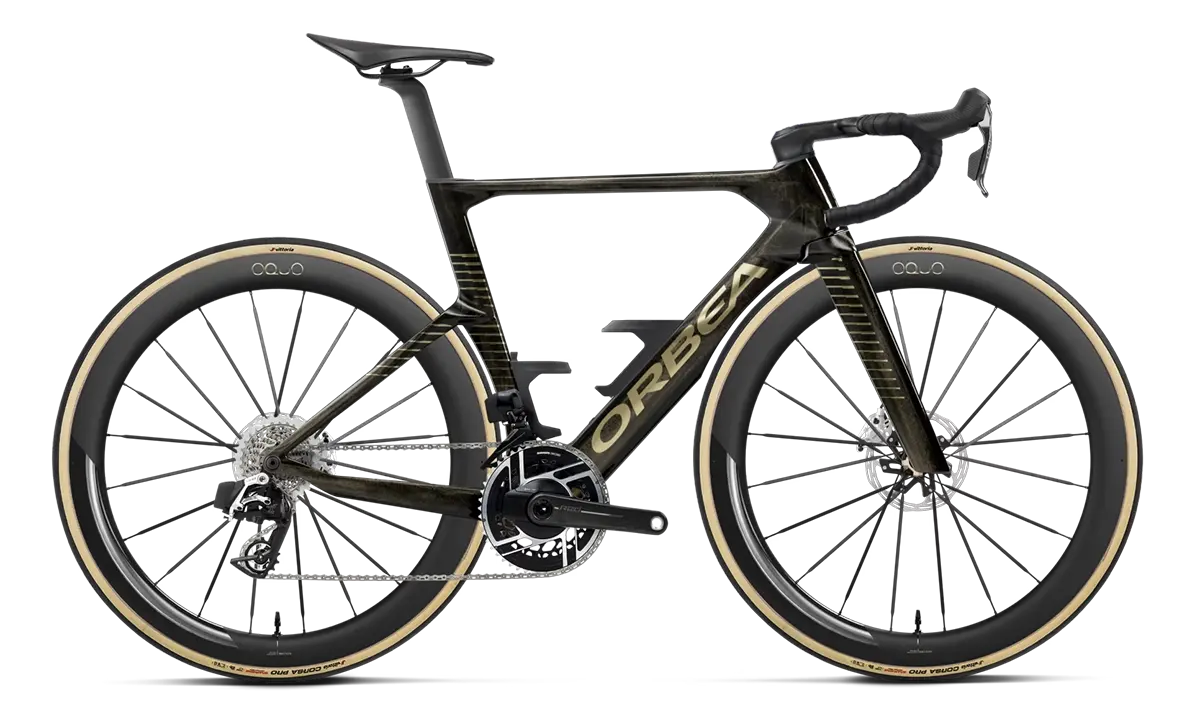

M11e LTD PWR
£9,999
- Frame Orbea Orca Aero Carbon OMX
- Fork Orbea Orca Aero OMX ICR
- Groupset SRAM Red AXS 12s
- Wheels Oquo RA57LTD
Customer Reviews
- There are no reviews for this bike so far. Be the first!
