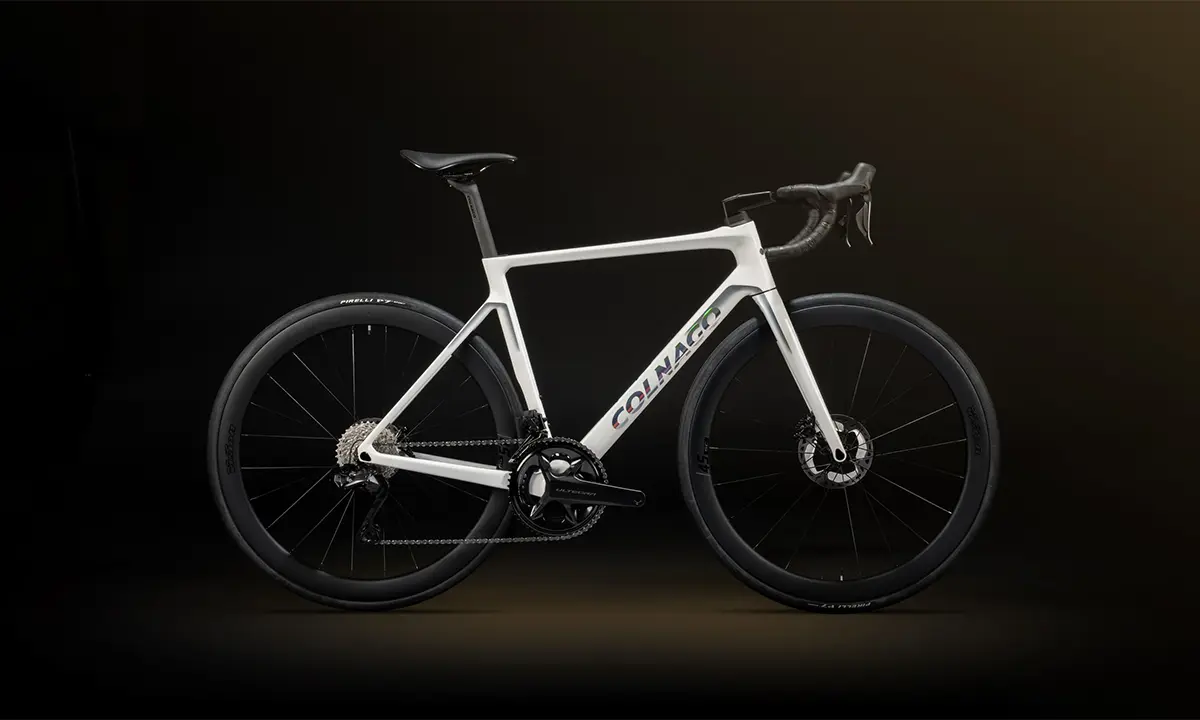

Colnago V4
The Colnago V4 is a pure all-rounder designed for those who demand the racing pedigree of the World Tour without the professional-only price tag. Drawing directly from the R&D that created the V4Rs—the bike of Tadej Pogačar—the V4 delivers an exhilarating, reactive ride in a clean, refined design that is as comfortable on long alpine climbs as it is in a fast-paced local criterium.
The Winning Soul, Within Your Reach.
Starting from: £5,999
Colnago V4: Pro-Validated DNA, Real-World Versatility.
While the V4Rs was built for the podiums of the Grand Tours, the Colnago V4 was built for the rider who wants that same speed with added versatility. Featuring a monocoque carbon frame that mirrors the aerodynamic profile and geometry of its flagship sibling, the V4 offers incredible stiffness and responsiveness. The revised frontal area—inspired by the V4Rs—features a sleeker headtube and a refined fork for improved airflow, while the standard SR10 stem ensures compatibility with a wide range of cockpit setups. With clearance for up to 32mm tyres, the V4 isn’t just fast; it’s a balanced machine ready for the varied surfaces of modern road cycling.
Key Features

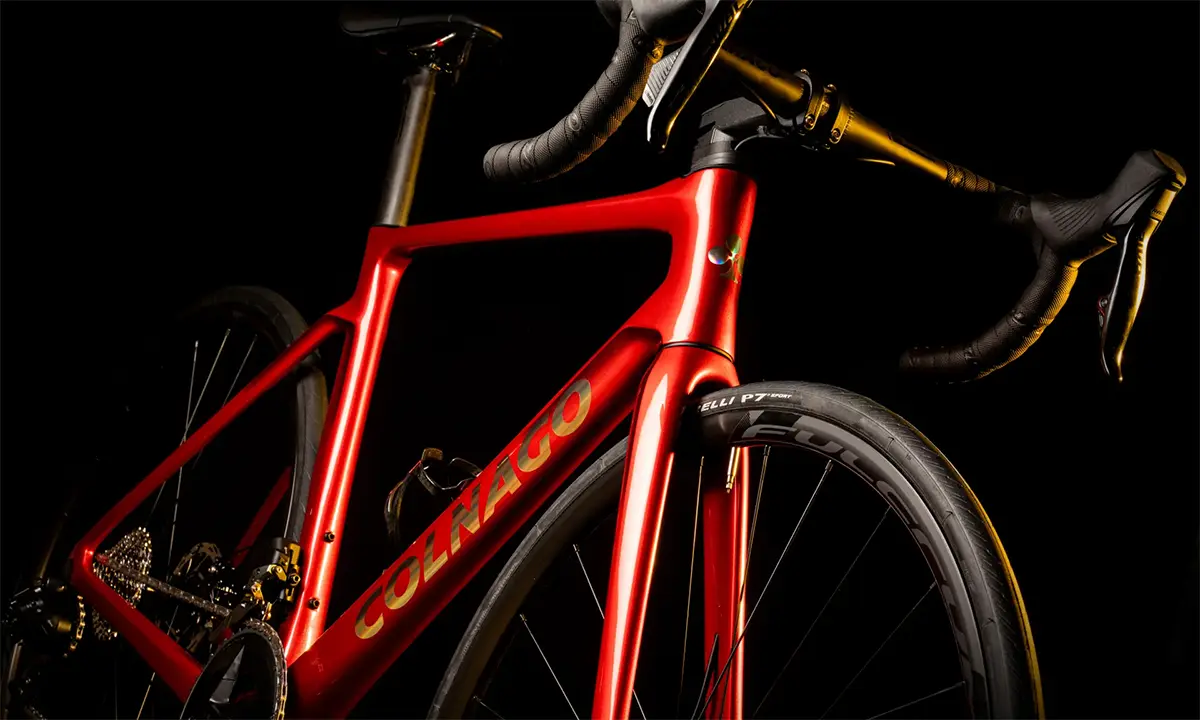

A racing soul
Shorter head tube and longer fork than previous models for enhanced rideability and responsiveness. These features - combined with quality carbon - make this bike perfectly suited to both climbs and flatter terrain.
Tyre up to 30 mm (nominal)

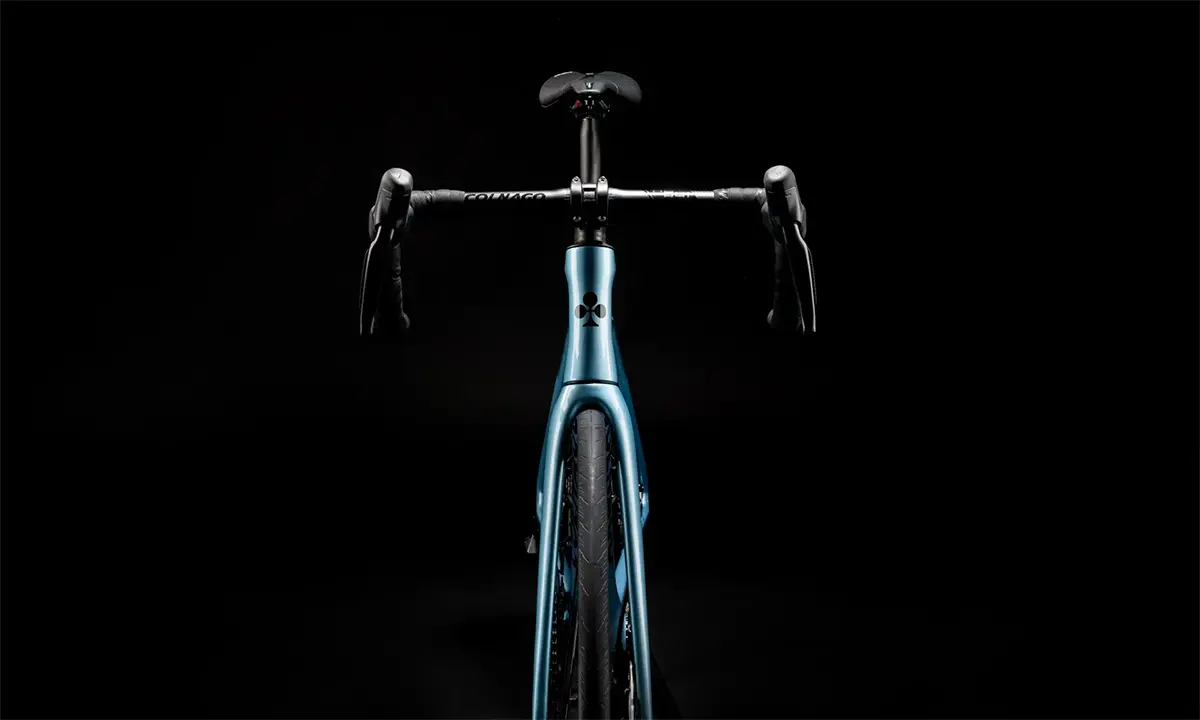

The fork is designed specifically for disc brakes and has concave chain stays to accommodate tyres up to 30mm (nominal).

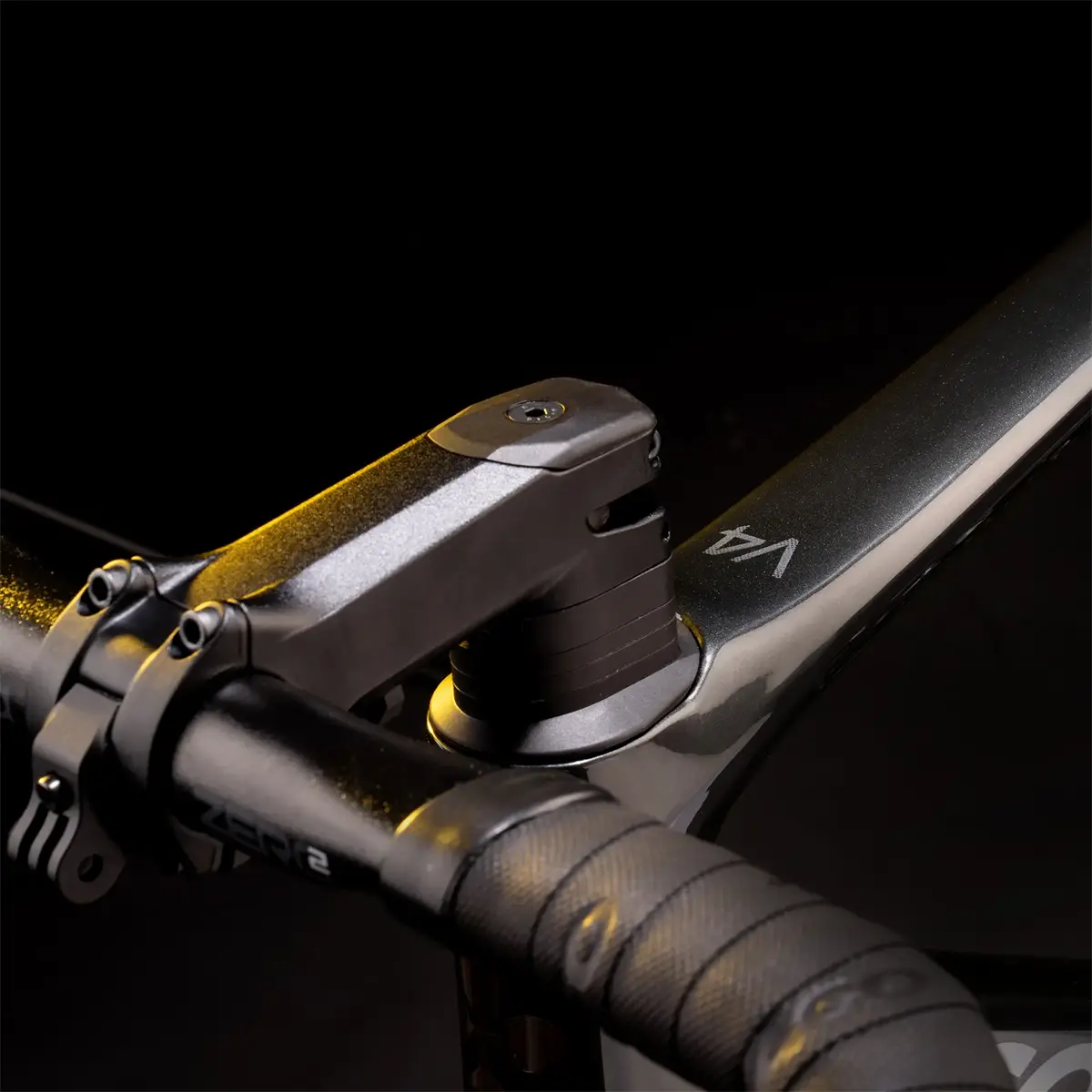

Integrated cables
The cables run inside the Colnago SR10 stem and then through the fork stem. This makes for an extremely sleek and technically more aerodynamic frame.
Available Colours
VDWH

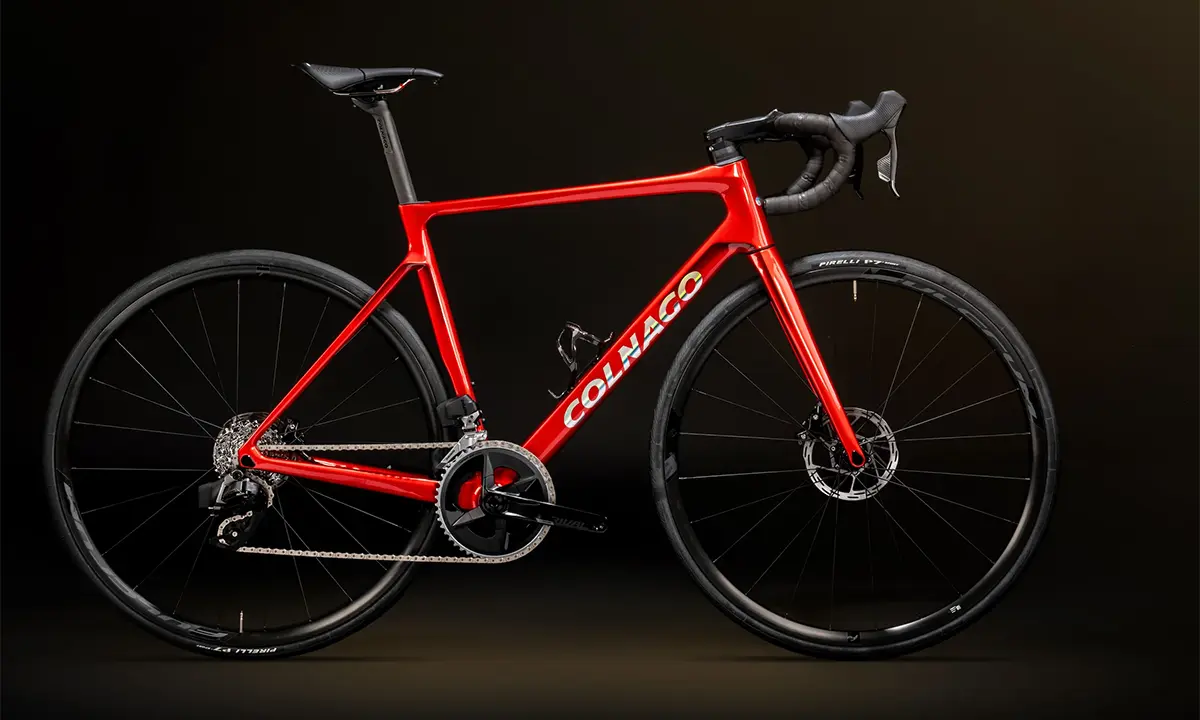

VDRD

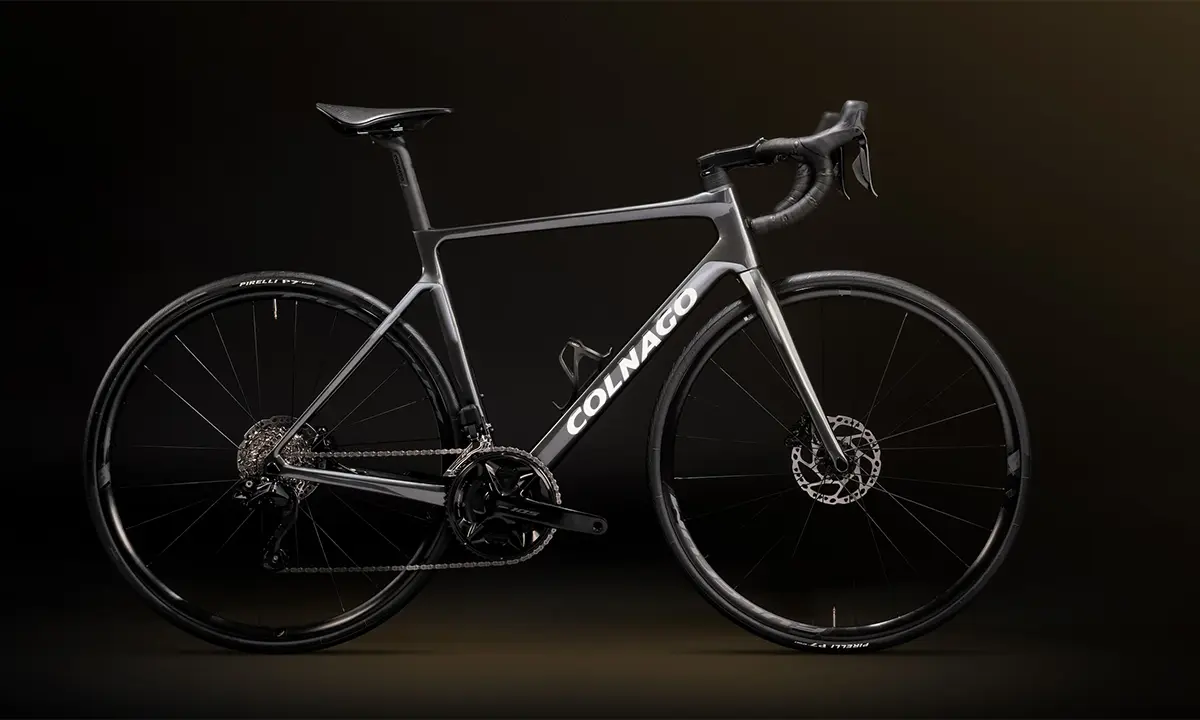

VDDK

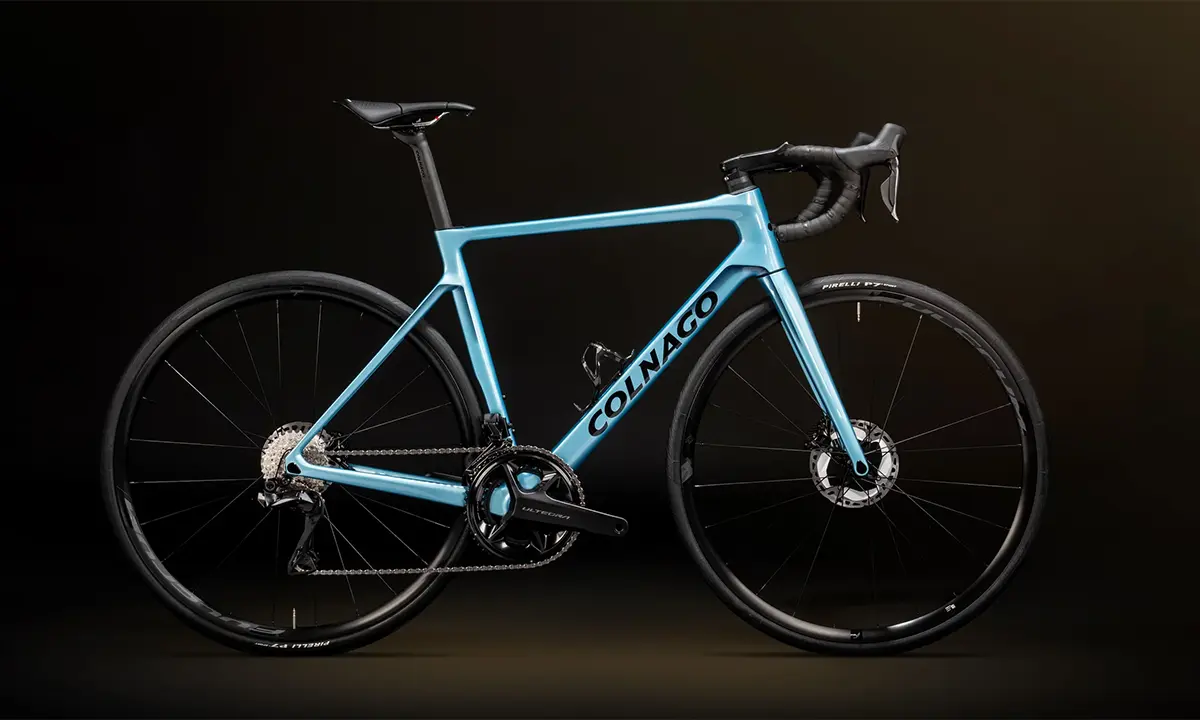

VDBL

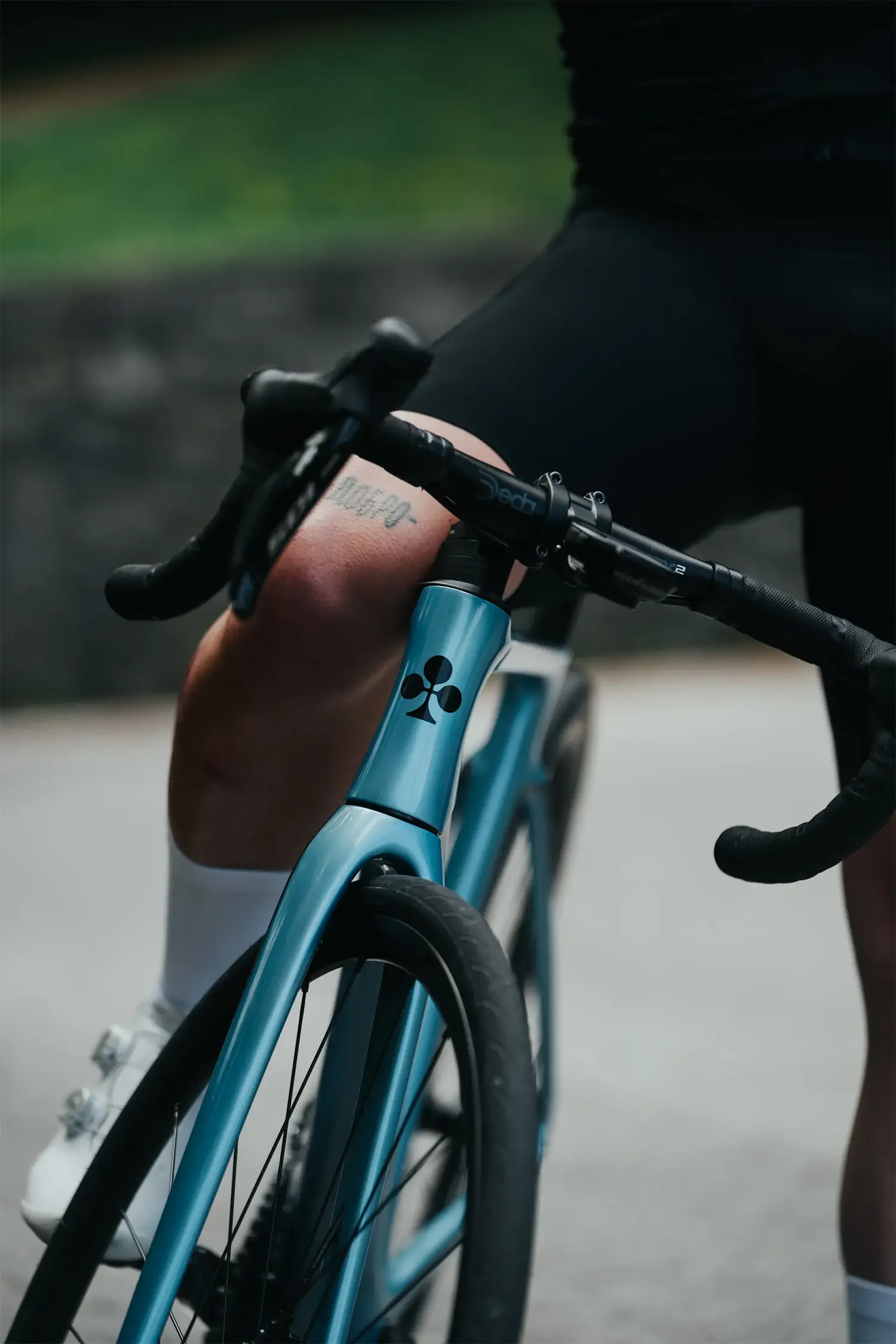

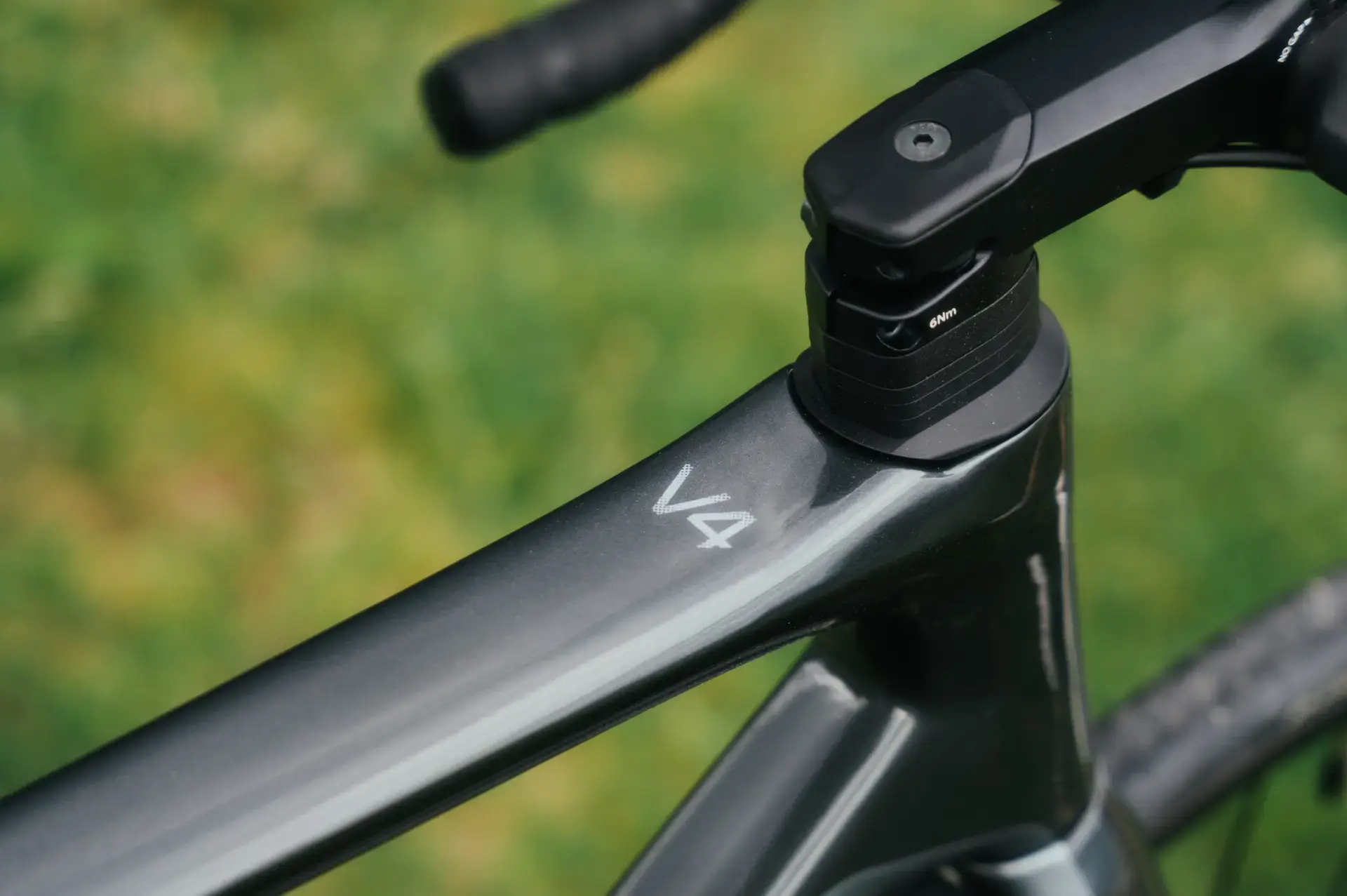

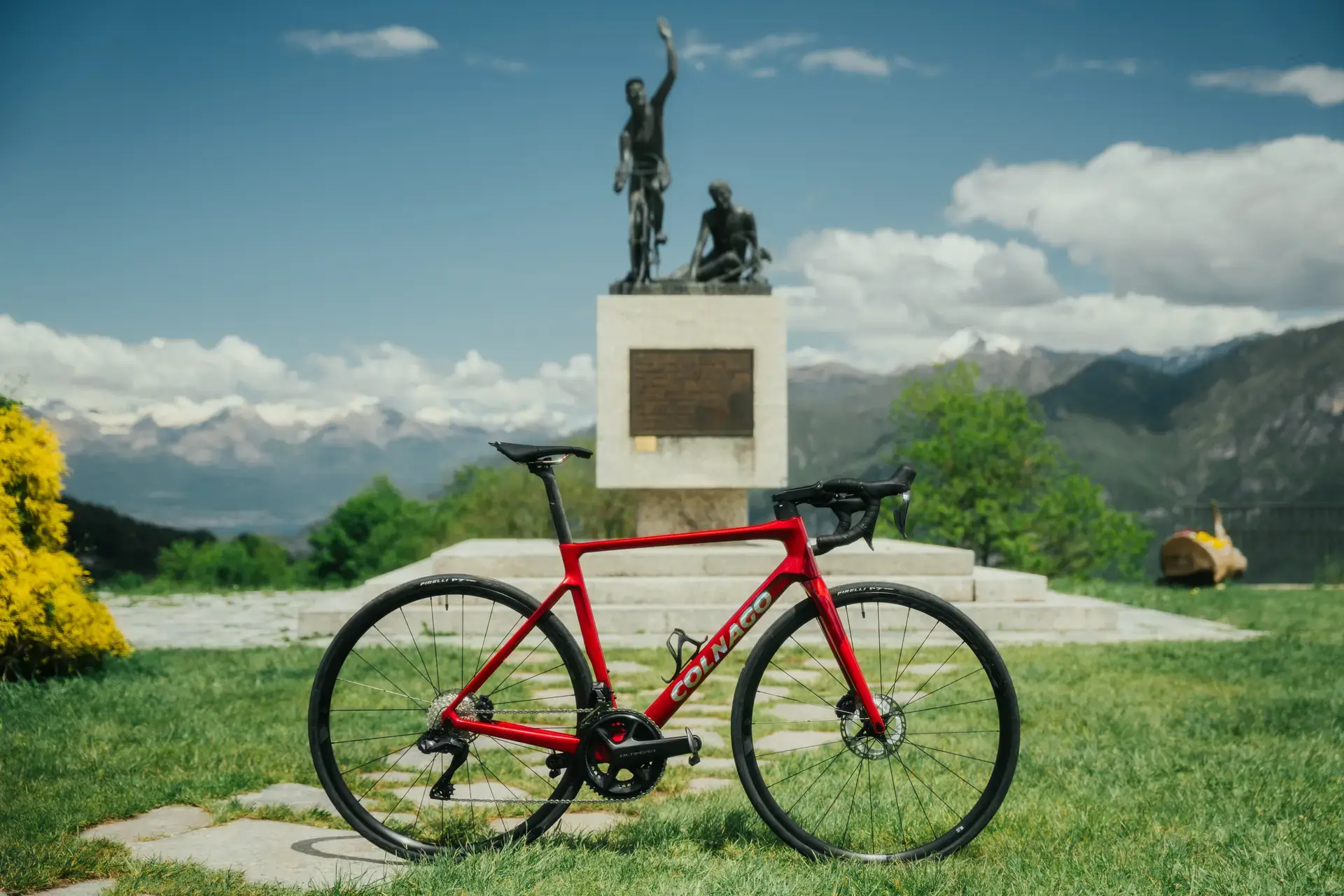

Gallery
See All 3 Photos

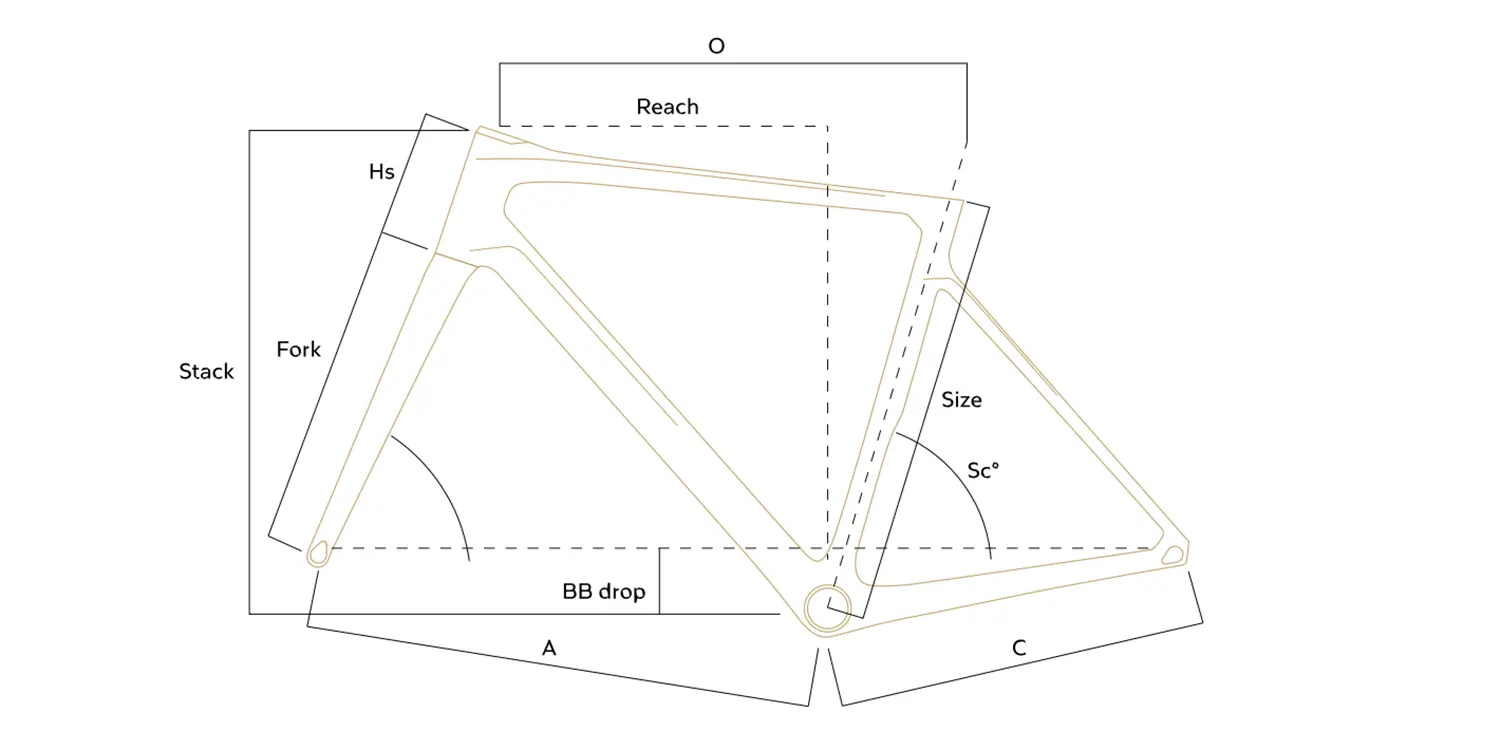

Geometry
| Geometry | 420 | 455 | 485 | 510 | 530 | 550 | 570 |
|---|---|---|---|---|---|---|---|
|
Reach
|
370 mm | 375 mm | 383 mm | 388 mm | 395 mm | 403 mm | 410 mm |
|
Stack
|
510 mm | 522 mm | 539 mm | 575 mm | 593 mm | 612 mm | |
|
O
|
504 mm | 517 mm | 535 mm | 567 mm | 586 mm | 599 mm | |
|
Fork
|
379 mm | 379 mm | 379 mm | 379 mm | 379 mm | 379 mm | 379 mm |
|
Hs: Head Tube Length
|
103 mm | 114 mm | 130 mm | 148 mm | 164 mm | 181 mm | 200 mm |
|
Ss: Head Tube Angle
|
70.6° | 71° | 71.5° | 71.8° | 72.5° | 72.9° | 73.1° |
|
Sc: Seat Tube Angle
|
75.50° | 75.0° | 74.5° | 74.0° | 73.5° | 73° | 73° |
|
C: Chainstay Length
|
408 mm | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm |
|
A: Front Center
|
576 mm | 582 mm | 591 mm | 597 mm | 599 mm | 608 mm | 619 mm |
|
BB drop: Bottom Bracket Offset
|
72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
Example Builds
Build Options
Disc 2025 Complete Road Bike SC45 Wheels Ultegra Di2 12s
£5,999
- Frame Colnago V4
- Wheels Vision SC45 Carbon Wheels I23
- Tyres Pirelli P7 Sport 700x28c
- Groupset Shimano Ultegra Di2
Customer Reviews
- There are no reviews for this bike so far. Be the first!
