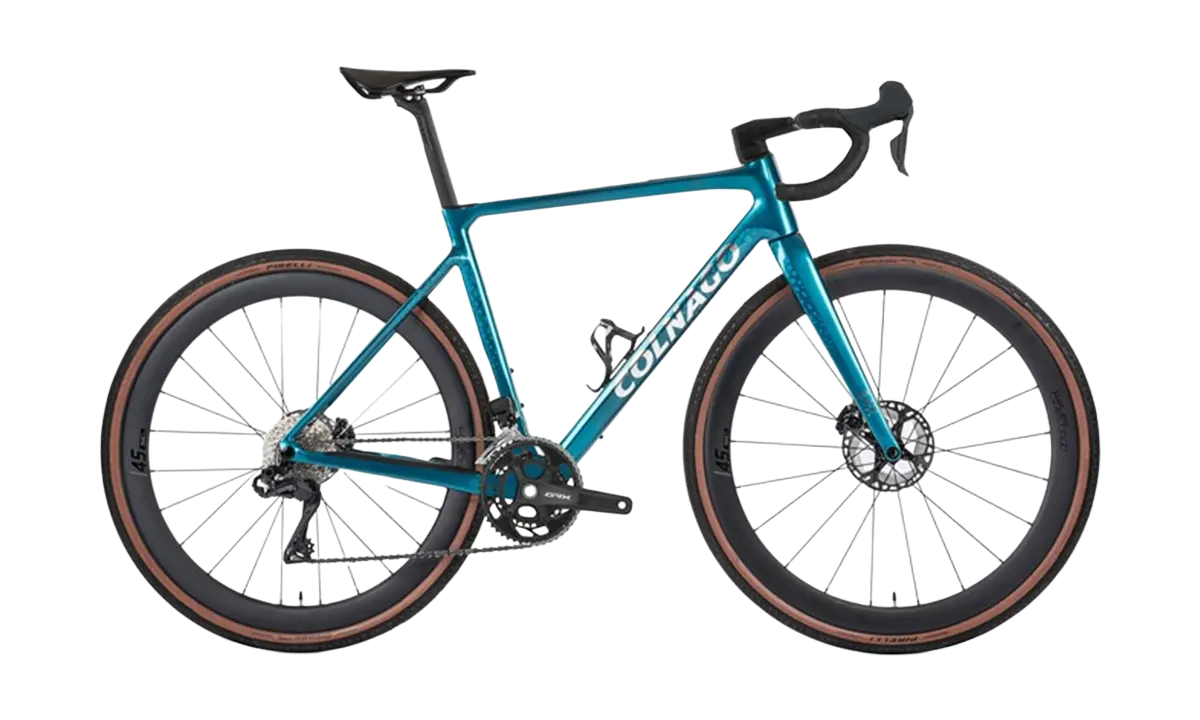

Colnago G4-X 2024

The Colnago G4-X is the ultimate fusion of classic Italian geometry and modern gravel performance. This frame is engineered for speed on all surfaces, delivering race-day precision with exceptional stability.

colnago g4 x

Colnago G4-X: Gravel, Race, Repeat

The Colnago G4-X 2024 is not merely an “all-road” bike; it is a Colnago—a machine built with a singular focus on competitive speed and flawless handling. This model carries the brand’s legendary stiffness and balance, making it instantly responsive on tarmac while remaining composed and stable over demanding gravel sectors. We provide the G4-X as a canvas for your bespoke build, ensuring your final component choices reflect the quality and ambition of this iconic frameset.

Key Features

Available Colours

  • icbl
  • mtyl
  • pigr

ICBL

colnago g4 x icbl

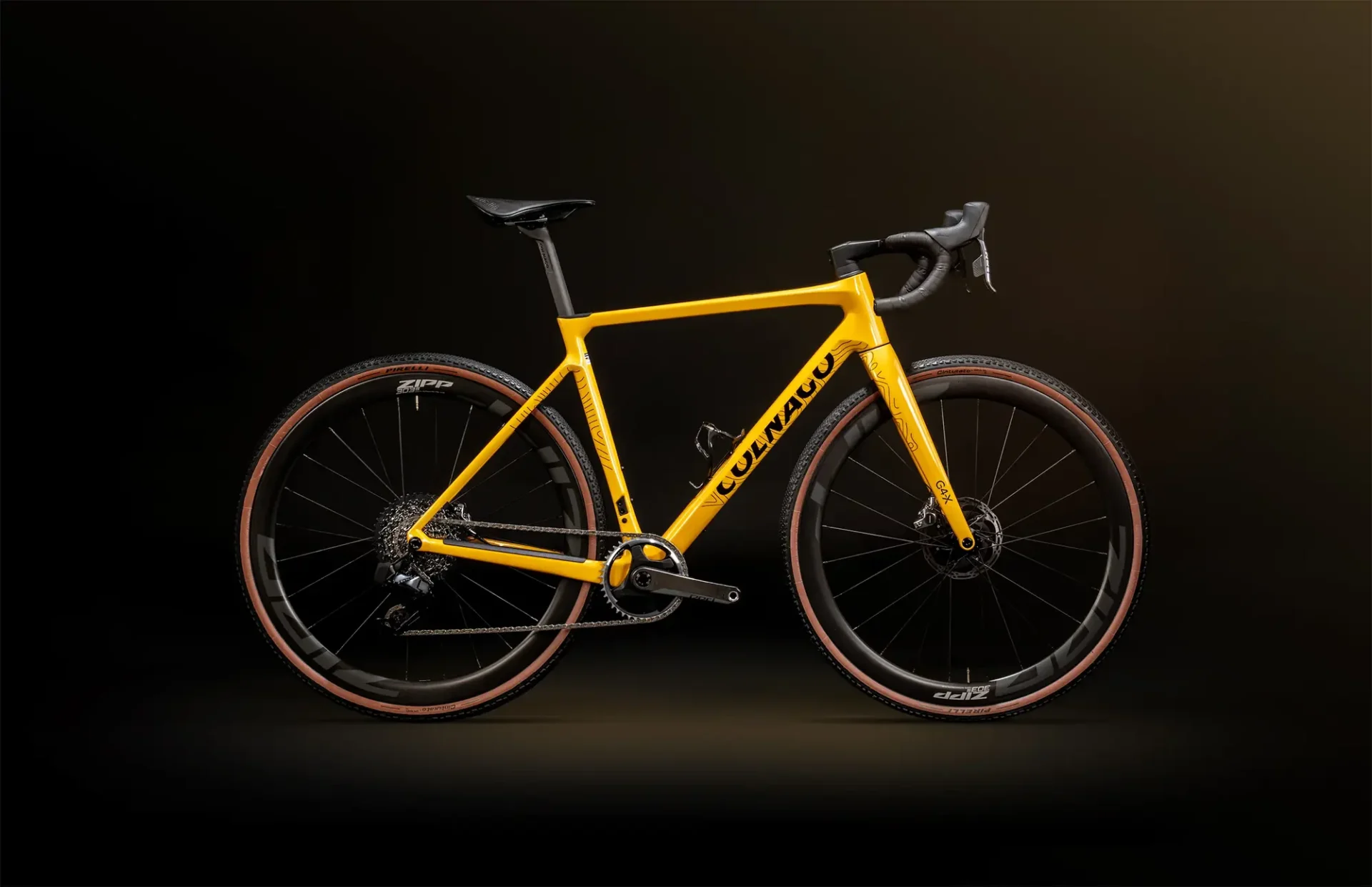

MTYL

colnago g4 x mtyl

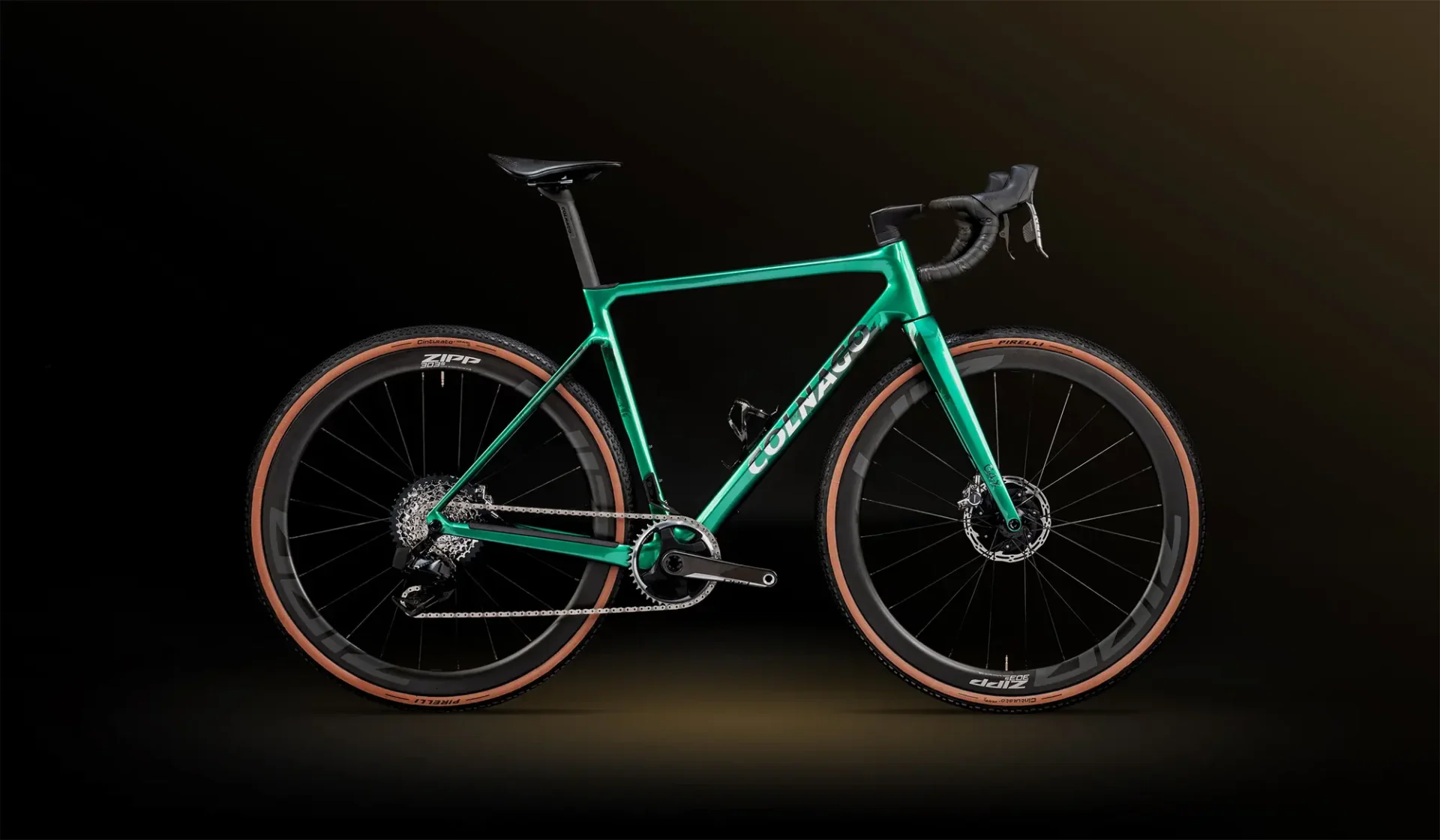

PIGR

colnago g4 x pigr
colnago g4 x geometry
Geometry 450 480 520 540 570
Reach
371 mm 380 mm 390 mm 400 mm 410 mm
Stack
535 mm 554 mm 573 mm 591 mm 600 mm
O: Top Tube Horizontal Length
524 mm 539 mm 560 mm 581 mm 596 mm
Fork
406 mm 406 mm 406 mm 406 mm 406 mm
Ss: Head Tube Angle
71° 71.5° 71.5° 71.5° 71.5°
Sc: Seat Tube Angle
74° 74° 73.5° 73° 73°
C: Chainstay Length
430 mm 430 mm 430 mm 430 mm 430 mm
A: Front Center
585 mm 596 mm 613 mm 628 mm 644 mm
BB drop: Bottom Bracket Offset
72 mm 72 mm 70 mm 70 mm 70 mm

Example Builds

Build Options

Below are some example builds/models available along with key components. Every aspect of your build is customisable in most cases. Choose a bike which suits you the best and we'll ensure the final build matches your exact budget and goals.

Colnago G4-X 2024 FAQs

Everything you need to know before ordering a Colnago G4-X 2024 through Tri Harder.

  • What's the maximum tyre width the G4-X can fit?

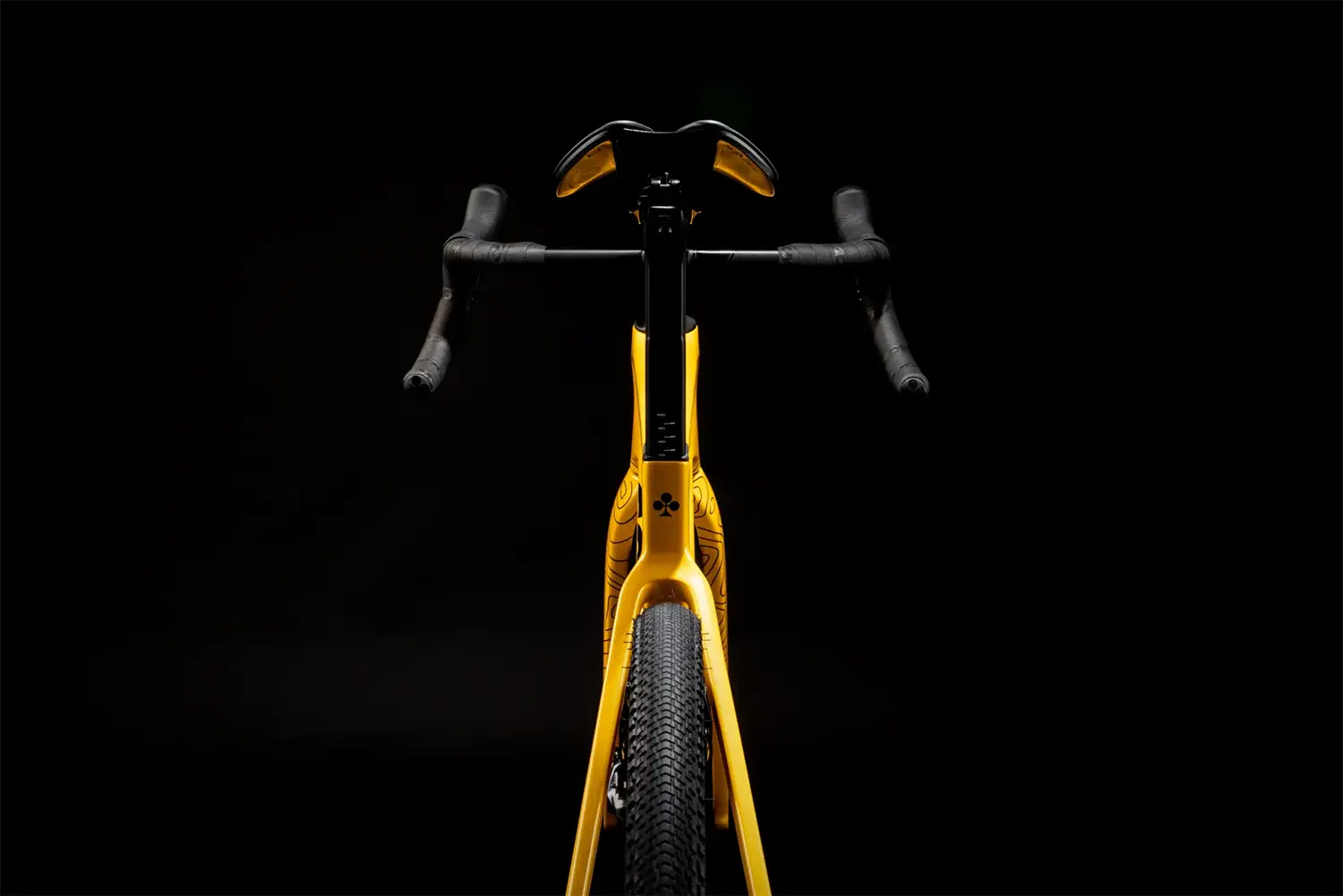

    The G4-X accepts tyres up to 45mm nominal width, giving genuine capability on rougher gravel sectors without sacrificing the frame’s race-focused handling.

  • Is the G4-X only available as a race bike, or can it handle longer rides?

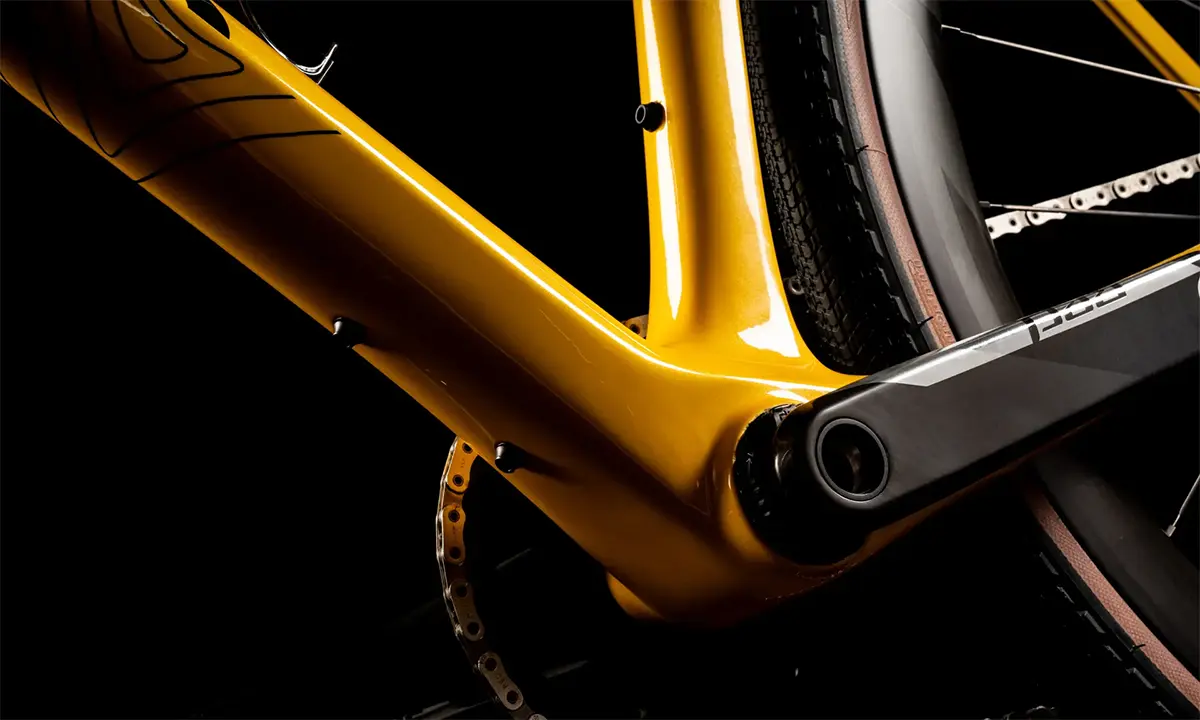

    It’s built primarily for speed and competitive handling, but it’s not race-only — the frame has four mounting points for bottle cages or small bags, so it can be set up for longer days out as well.

  • What bottom bracket and cockpit does the G4-X use?

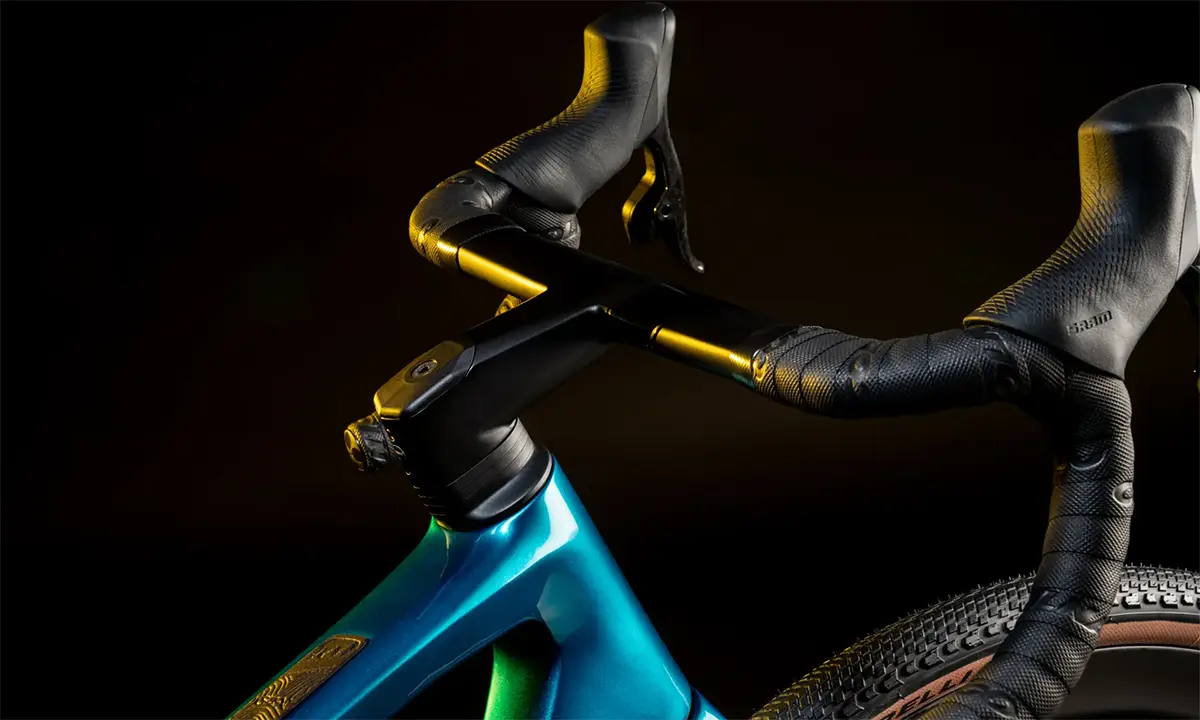

    It runs a standard T47 bottom bracket. For the cockpit, you can choose either a traditional stem-and-handlebar 2-piece setup or Colnago’s integrated CC.01 Wide cockpit, depending on your fit and preference.

  • Can I build the G4-X with a different groupset to what's shown on the site?

    Yes — every build is customisable to your budget and goals. Come and talk to us and we’ll spec the G4-X around the groupset, wheels, and finishing kit that suits you.

Don't want to wait?

We have the following bike(s) in stock

What We Think Of The Colnago G4-X 2024

Our Verdict
Ben

Ben — Tri Harder

Colnago call it 'not merely an all-road bike' and that's fair — this is a race bike that happens to take gravel tyres. If you want Italian racing pedigree with real off-road capability rather than a gravel bike that's just been made lighter, this is it.

What we like

  • 45mm max tyre clearance — genuinely capable off-road, not a token gravel allowance
  • Four mounting points for bags/bottles — long-adventure capable despite the race-focused positioning
  • T47 bottom bracket and reinforced seatpost lock — built for demanding off-road use, not just marketing language

Worth knowing

  • £5,999 entry — same bracket as the (now discontinued) C68 Allroad, one of the most expensive frames in the range

Best For

Riders who want Italian race pedigree and genuine off-road capability, not a softened endurance bike — happy to have a conversation with us about the custom build rather than picking from a fixed spec sheet.
